Product Details:
|
| Resolution: | 240(RGB)×400 , WQVGA | Panel Size: | 3.0 Inch |
|---|---|---|---|
| Panel Type: | CG-Silicon , LCM | Active Area: | 39.24×65.4 Mm |
| Outline: | 44.56×75.36 Mm | Brightness: | 250 Cd/m² (Typ.) |
| Contrast Ratio: | 300:1 (Typ.)(Transmissive) 12:1 (Typ.)(Reflective) | Display Colors: | 4096 (4-bit) , CIE1931 72% |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
3.0 inch LS030B8PX01H Sharp LCD Panel with 39.24×65.4 mm Active Area
LS030B8PX01H Specification
| Panel Size : | 3.0 inch | |
| Dot Resolution : | 240(RGB)×400 (WQVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 155 PPI | |
| Aspect Ratio : | 3:5 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0545×0.1635 mm (H×V) | |
| Pixel Pitch : | 0.1635×0.1635 mm (H×V) | |
|
9.0g (Typ.) | |
| Active Area : | 39.24×65.4 mm (H×V) | |
|
44.56×75.36 mm (H×V) | |
| Outline Depth : | 2.0 (Typ.) mm | |
| Touch Panel : | Without | |
| Display Mode : | TN, Normally White, Transflective | |
| Brightness : | 250 cd/m² (Typ.) | |
|
300 : 1 (Typ.) (Transmissive) | |
| Contrast Ratio : | 12:1 (Typ.) (Reflective) | |
| Display Color : | 4096 (4-bit) | |
| Color Gamut : | 72% NTSC (CIE1931) | |
| Response Time : | 60/30 (Typ.)(Tr/Td) | |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥3) (L/R/U/D) | |
| Reflectance Ratio : | 0.9/1.5% (Min./Typ.) | |
| Sunlight Readable : | Y |
Our Company Strength in LCD Screen Sourcing:
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

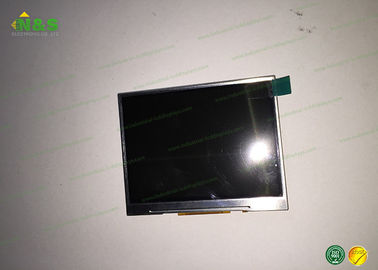

LS030B8PX01H Picture
