Product Details:
|
Panel Type :: | A-Si TFT-LCD , LCM | Panel Size :: | 15.9 Inch |
---|---|---|---|
Surface :: | Antiglare | Display Colors :: | 16.2M (6-bit + FRC) |
High Light: | industrial touch screen display,industrial lcd panel |

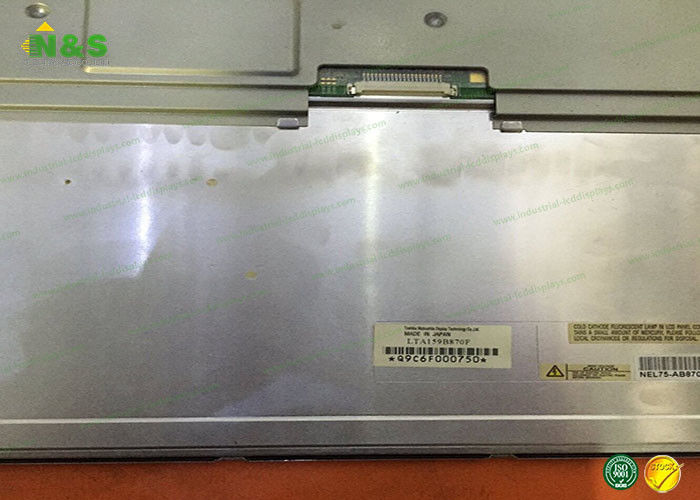

Normally White LTA159B870F TOSHIBA 15.9 inch with 360.96×181.89 mmActive Area
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
LTA159B870F Specification
Panel Size : | 15.9 inch |
---|---|
Dot Resolution : | 1280(RGB)×645 |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 90 PPI |
Aspect Ratio : | 2:1 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.094×0.282 mm (H×V) |
Pixel Pitch : | 0.282×0.282 mm (H×V) |
Weight : | 1.30Kgs |
Surface : | Antiglare |
Active Area : | 360.96×181.89 mm (H×V) |
Outline Dimension : | 399.5×207.5 mm (H×V) |
Outline Depth : | 22.0 mm |
Holes & Brackets : | Side mounting holes (4-M3) |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
LTA159B870F Specification
Lamp Position : | Edge light type (Top side) | |||||
---|---|---|---|---|---|---|
Lamp Type : | CCFL | |||||
Lamp Amount : | 2 pcs | |||||
Lamp Shape : | Straight | |||||
Lamp Voltage : | 650V (Typ) | |||||
Lamp Current : | 4.5/7.0/7.5mA (Min./Typ./Max.) | |||||
Lamp Startup Voltage : | 1900V (Min.)(Ta=0℃) | |||||
Interface Type : | Connector | |||||
Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
JST | BHR-03(4-3)VS-1N | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HHL | |
Lamp Driver Board : | No |
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2.Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3.Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4.After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LTA200A030F | TOSHIBA | 20.1" | 640×480 |
LT121DEVBK00 | TOSHIBA | 12.1" | 1280×800 |
LT121AC33W00 | TOSHIBA | 12.1" | 800×600 |
LT121AC25500 | TOSHIBA | 12.1" | 1024×768 |
LT104AD18E00 | TOSHIBA | 10.4" | 800×600 |
LT104AD18900 | TOSHIBA | 10.4" | 800×600 |
LT104AC36300 | TOSHIBA | 10.4" | 1024×768 |
LT104AC36200 | TOSHIBA | 10.4" | 1024×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
