Product Details:
|
| Panel Model: | M215HTN01.0 | Panel Size: | 21.5 Inch |
|---|---|---|---|
| Active Area: | 476.64×268.11 Mm | Outline: | 495.6×292.2×10.7 Mm |
| High Light: | auo display panel,auo lcd screen |
||
M215HTN01.0 21.5 inch AUO LCD Panel with 476.64×268.11 mm Active Area
M215HTN01.0 Detail
| Panel Brand : | AUO |
| Panel Model : | M215HTN01.0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 21.5 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 476.64×268.11 mm |
| Outline : | 495.6×292.2×10.7 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 3.8/1.2 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 12S4P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Panel Size : | 21.5 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 102 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.08275×0.24825 mm (H×V) |
| Pixel Pitch : | 0.24825×0.24825 mm (H×V) |
| Weight : | 1.85Kgs |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 476.64×268.11 mm (H×V) |
| Bezel Area : | 479.84×271.3 mm (H×V) |
| Outline Dimension : | 495.6×292.2 mm (H×V) |
| Outline Depth : | 8.5/10.7 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on up, down bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |
| M238DAN01.1 CELL | AUO | 23.8" | 2560×1440 |
| M270DAN02.0 CELL | AUO | 27.0" | 2560×1440 |
| H598DAN03.0 | AUO | 6.0" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

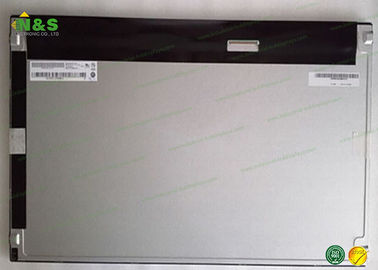

M215HTN01.0 AUO LCD Panel Picture
