10.1 inch A070VW02 V1 AUO LCD222.72×125.28 mm Active Area for Portable DVD player panel

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

10.1 inch A070VW02 V1 AUO LCD222.72×125.28 mm Active Area for Portable DVD player panel

10.1 inch A070VW02 V1	AUO LCD222.72×125.28 mm Active Area for Portable DVD player panel
10.1 inch A070VW02 V1	AUO LCD222.72×125.28 mm Active Area for Portable DVD player panel

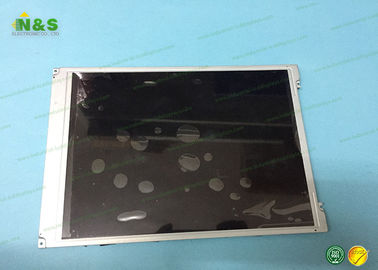

Large Image :  10.1 inch A070VW02 V1 AUO LCD222.72×125.28 mm Active Area for Portable DVD player panel

Product Details:
Place of Origin: KOREA
Brand Name: AU Optronics
Certification: ISO9001
Model Number: A101SW01 V1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

10.1 inch A070VW02 V1 AUO LCD222.72×125.28 mm Active Area for Portable DVD player panel

Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 7.0 Inch
Resolution: 800(RGB)×480 , WVGA Display Mode: TN, Normally White, Transmissive
Active Area: 152.4×91.44 Mm Outline: 165×106×5.7 Mm
High Light:

auo display panel

,

auo lcd screen

10.1 inch A070VW02 V1 AUO LCD222.72×125.28 mm Active Area for Portable DVD player panel



A070VW02 V1 Information



Panel Size : 10.1 inch
Dot Resolution : 1024(RGB)×600 (WSVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 117 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0725×0.2088 mm (H×V)
Pixel Pitch : 0.2175×0.2088 mm (H×V)
Weight : 215g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 222.72×125.28 mm (H×V)
Bezel Area : 225.72×128.48 mm (H×V)
Outline Dimension : 235×143 mm (H×V)
Outline Depth : 5.2±0.2 mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 275 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 45% NTSC (CIE1931)
Response Time : 7/9 (Typ.)(Tr/Td)
Viewing Angle : 65/65/50/50 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.300; Wy:0.320
White Variation : 1.33/1.43 (Typ./Max.)(9 points)
Sunlight Readable : N



Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
T320HVN02.1 CELL AUO 31.5" 1920×1080
M270DAN01.1 CELL AUO 27.0" 2560×1440
T320HVN02.1 CELL AUO 31.5" 1920×1080
T500QVN03.0 CELL AUO 50" 3840×2160
H546DAN07.3 AUO 5.5" 1080×1920
