Product Details:
|
| Panel Size :: | 15.0 Inch | Resolution :: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Active Area :: | 304.128×228.096 Mm | Outline :: | 351×254.7×21.5 Mm |
| Display Colors :: | 16.2M (6-bit + FRC) | Viewing Angle :: | 80/80/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

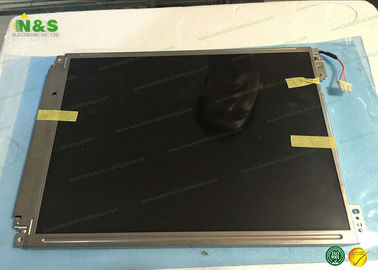

15.0 inch LTA150B850F TOSHIBA Normally White with 304.128×228.096 mm
LTA150B850F Specification
.
| Panel Size : | 15.0 inch |
|---|---|
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.35Kgs |
| Active Area : | 304.128×228.096 mm (H×V) |
| Outline Dimension : | 351×254.7 mm (H×V) |
| Outline Depth : | 21.0±0.5 mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA150B850F Specification
| Lamp Position : | Edge light type (Top and Bottom) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 4 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 30K(Typ.) (Hours) | |||||
| Lamp Voltage : | 700V (Typ.) | |||||
| Lamp Current : | 4.5/7.0/7.5mA (Min./Typ./Max.) | |||||
| Lamp Startup Voltage : | 1500V (Max.) (Ta=0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03(4-3)VS-1N | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| Lamp Driver Board : | No | |||||
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTA200A030F | TOSHIBA | 20.1" | 640×480 |
| LT121DEVBK00 | TOSHIBA | 12.1" | 1280×800 |
| LT121AC33W00 | TOSHIBA | 12.1" | 800×600 |
| LT121AC25500 | TOSHIBA | 12.1" | 1024×768 |
| LT104AD18E00 | TOSHIBA | 10.4" | 800×600 |
| LT104AD18900 | TOSHIBA | 10.4" | 800×600 |
| LT104AC36300 | TOSHIBA | 10.4" | 1024×768 |
| LT104AC36200 | TOSHIBA | 10.4" | 1024×768 |
