Normally White M201P1-L03 CMO LCD Panel Hard coating 20.1 inch with 408.24×306.18 mm

Normally White M201P1-L03 CMO LCD Panel Hard coating 20.1 inch with 408.24×306.18 mm
Normally White M201P1-L03 CMO LCD Panel Hard coating 20.1 inch with 408.24×306.18 mm

Large Image :  Normally White M201P1-L03 CMO LCD Panel Hard coating 20.1 inch with 408.24×306.18 mm

Product Details:
Place of Origin: KOREA
Brand Name: Innolux
Certification: ISO9001
Model Number: M201P1-L03
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

Normally White M201P1-L03 CMO LCD Panel Hard coating 20.1 inch with 408.24×306.18 mm

Description
Display Colors: 16.7M (6-bit + Hi-FRC) Response Time: 1.3/3.7 (Typ.)(Tr/Td)
Active Area: 408.24×306.18 Mm Resolution: 1400(RGB)×1050 , SXGA+
High Light:

tft lcd display

,

lcd display panel

Normally White M201P1-L03 CMO LCD Panel Hard coating 20.1 inch with 408.24×306.18 mm



M201P1-L03 CMO LCD Panel Detail

Panel Brand : CMO
Panel Model : M201P1-L03
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 20.1 inch
Resolution : 1400(RGB)×1050 , SXGA+
Display Mode : TN, Normally White, Transmissive
Active Area : 408.24×306.18 mm
Outline : 432×331.5 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC)
Response Time : 1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)



Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Competitive price for different brands hard disk.

• Mass stock with the better price.

• Multiple options.

• Warranty service.

• Better team to provide the before-sales, on-sale and after-sale service

• Pls send us message if any hard disk needed.



Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day



Panel Size : 20.1 inch
Dot Resolution : 1400(RGB)×1050 (SXGA+)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 87 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0972×0.2916 mm (H×V)
Pixel Pitch : 0.2916×0.2916 mm (H×V)
Weight : 2.90Kgs (Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 408.24×306.18 mm (H×V)
Bezel Area : 413.0×311.0 mm (H×V)
Outline Dimension : 432×331.5 mm (H×V)
Outline Depth : 16.5/17.0 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4 pcs)
Landscape or Portrait : Landscape type
Touch Panel : Without



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
ET017QC1 E Ink 1.7" 240×320
ET017QG1 E Ink 1.7" 240×320
ED060XG1 E Ink 6.0" 758×1024
EC097SC1 E Ink 9.7" 600×800
ED097OC6 E Ink 9.7" 1200×825
ED097OC4 E Ink 9.7" 1200×825
ED060SCF E Ink 6.0" 600×800
ED060SCC E Ink 6.0" 600×800
ED060SC9 E Ink 6.0" 600×800
ED060XC5 E Ink 6.0" 758×1024

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

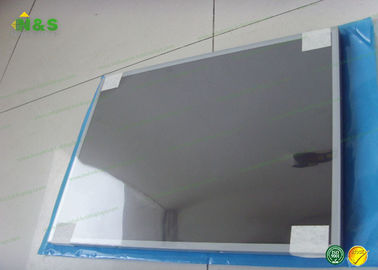

M201P1-L03 Innolux LCD Panel Picture



Normally White M201P1-L03 CMO LCD Panel Hard coating 20.1 inch with 408.24×306.18 mm 0
