Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 480(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 154.08×86.58 Mm | Outline: | 164.9×100 Mm |
| High Light: | auo display panel,auo lcd screen |
||

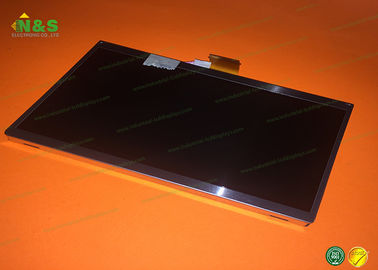

Normally White A070FW03 V9 AUO LCD Panel 7.0 inch 480×234 for Portable DVD player panel
A070FW03 V9 Information
| Panel Size : | 7.0 inch |
| Dot Resolution : | 480(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.107×0.370 mm (H×V) |
| Pixel Pitch : | 0.321×0.370 mm (H×V) |
| Weight : | 153.5g (Typ.) |
| Surface : | Antiglare (Haze 25%) |
| Active Area : | 154.08×86.58 mm (H×V) |
| Bezel Area : | 156.08×88.58 mm (H×V) |
| Outline Dimension : | 164.9×100 mm (H×V) |
| Outline Depth : | 5.7 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode | TN, Normally White, Transmissive |
| Brightness : | 280 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | Full color () |
| Response Time : | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/40/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.25/1.33 (Typ./Max.) |
| Sunlight Readable : | N |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| M270DAN01.1 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
