Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 23.0 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 , FHD | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 509.184×286.416 Mm | Outline: | 533.2×312 Mm |
| High Light: | lg display panel,lg lcd display |
||
Normally White LM230WF5-TLC1 LG LCD Pane 23.0 inchLCM 1920×1080 300 1000:1 16.7M WLED LVDS
LM230WF5-TLC1 Specification
| Panel Size : | 23.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0884×0.2652 mm (H×V) |
| Pixel Pitch : | 0.2652×0.2652 mm (H×V) |
| Weight : | 1.90/2.10Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 509.184×286.416 mm (H×V) |
| Bezel Area : | 513.784×291.016 mm (H×V) |
| Outline Dimension : | 533.2×312 mm (H×V) |
| Outline Depth : | 10.6/11.8 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (2-M3) on left bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
| LH350H05-SH03 | LG Display | 3.5" | 320×480 |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 68% NTSC (CIE1931) |
| Response Time : | 1.3/3.7 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/75/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |

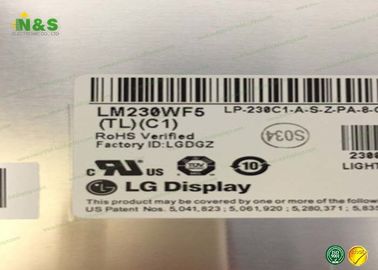

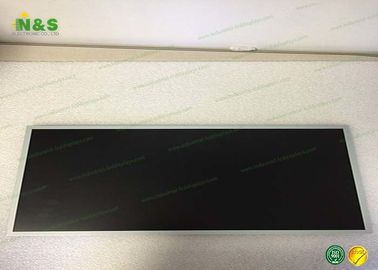

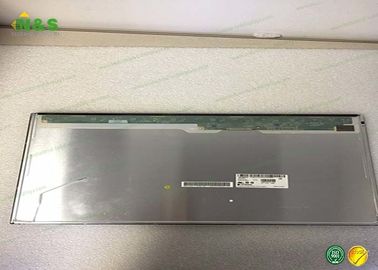

LM230WF5-TLC1 Picture
