Product Details:
|
| Panel Model :: | LTA121C30SF | Panel Size :: | 12.1 Inch |
|---|---|---|---|
| Active Area :: | 246×184.5 Mm | Outline :: | 278.3×209×11 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||

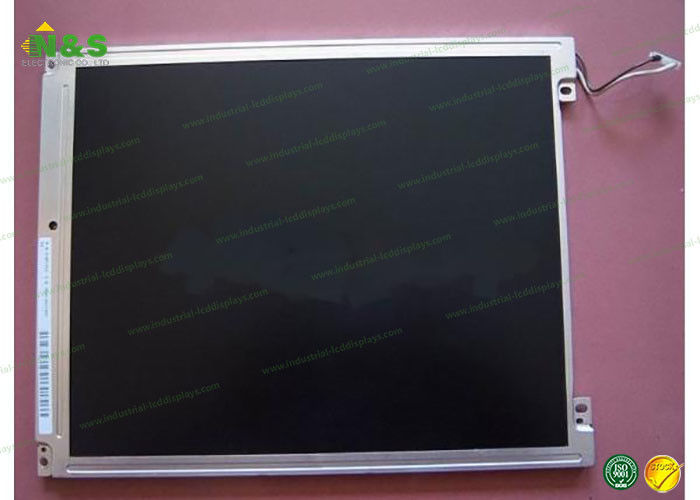

Normally White LTA121C30SF TOSHIBA 12.1 inch for Industrial Appication panel
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD104XA1F | TOSHIBA | 10.4" | 1024×768 |
| EDTCA41 | TOSHIBA | 6.5" | 320×234 |
| LTD121KC5C | TOSHIBA | 12.1" | 1024×768 |
| TFD65W46 | TOSHIBA | 6.5" | 480×234 |
| LTD131EQ2A | TOSHIBA | 13.1" | 1600×900 |
| LT043MDY5000 | TOSHIBA | 4.3" | 720×1280 |
| LTM15C458-11 | TOSHIBA | 15.0" | 1024×768 |
| LTM018DG30 | TOSHIBA | 1.8" | 240×320 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
LTA121C30SF Specification
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Weight : | 680g (Typ.) |
| Active Area : | 246×184.5 mm (H×V) |
| Bezel Area : | 249.0×187.5 mm (H×V) |
| Outline Dimension : | 278.3×209 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA121C30SF Specification
| Lamp Position : | Edge light type (Top side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 60K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Voltage : | 520V (Typ.) | |||||
| Lamp Current : | 4.0/6.5mA (Min./Max.) | |||||
| Lamp Startup Voltage : | 1200V (Min.)(Ta=0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
| Lamp Driver Board : | No | |||||
