Product Details:
|
| Panel Size: | 9.0 Inch | Resolution: | 800×480(RGB) , WVGA |
|---|---|---|---|
| Contrast Ratio: | 500:1 (Typ.) | Signal Interface: | TTL (1 Ch, 8-bit) + SPI , 68 Pins |
| High Light: | auo display panel,auo lcd screen |
||
| Panel Size : | 9.0 inch | |
| Dot Resolution : | 800×480(RGB) (WVGA) | |
| Pixel Configuration : | RGB Horizontal Stripe | |
| Pixel Density : | 104 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.249×0.0765 mm (H×V) | |
| Pixel Pitch : | 0.249×0.2295 mm (H×V) | |
| Weight : |
| |
| Surface : | Antiglare, Hard coating (3H) | |
| Active Area : | 199.2×110.16 mm (H×V) | |
| Bezel Area : | 201.2×112.16 mm (H×V) | |
| Outline Dimension : | 211.7×125 mm (H×V) | |
| Outline Depth : | 4.6 (Typ.) mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
| |
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 48% NTSC (CIE1931) | |
| Response Time : | 4/12 (Typ.)(Tr/Td) | |
| Viewing Angle : | 70/70/55/70 (Typ.)(CR≥10) (L/R/U/D) | |
| White color Chromaticity : |
| |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
| H429ALN01 V0 | AUO | 4.3" | 540×960 |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.

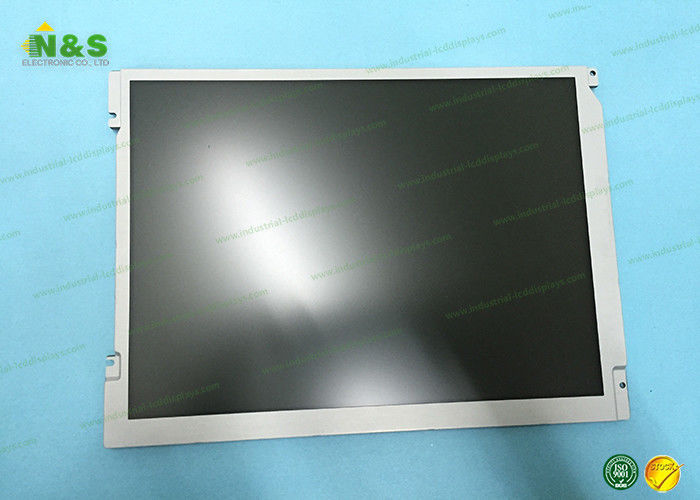

A090VW01 V3 Picture
