Product Details:
|
| Panel Size: | 15.0 Inch | Resolution: | 1280(RGB)×720 , WXGA |
|---|---|---|---|
| Contrast Ratio: | 400:1 (Typ.) | Signal Interface: | LVDS (1 Ch, 8-bit) , 20 Pins |
| High Light: | auo display panel,auo lcd display |
||
| Panel Size : | 15.0 inch | |
| Dot Resolution : | 1280(RGB)×720 (WXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 97 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0865×0.2595 mm (H×V) | |
| Pixel Pitch : | 0.2595×0.2595 mm (H×V) | |
| Weight : |
| |
| Surface : | Antiglare | |
| Active Area : | 332.16×186.84 mm (H×V) | |
| Bezel Area : | 335.36×190.04 mm (H×V) | |
| Outline Dimension : | 354.1×227.4 mm (H×V) | |
| Outline Depth : | 12.0 (Typ.) mm | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| A090XE01 V6 | AUO | 9.0" | 1024×768 |
| A090XE01 V5 | AUO | 9.0" | 1024×768 |
| A043SE01 V3 | AUO | 4.3" | 600×800 |
| H283QN00 V6 | AUO | 2.8" | 240×320 |
| M270DAN01.0 CELL | AUO | 27.0" | 2560×1440 |
| H644DAN01.1 | AUO | 6.5" | 1080×1920 |
| Display Mode : |
| |
| Brightness : | 200 cd/m² (Typ.) | |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (6-bit + Hi-FRC) | |
| Color Gamut : | 45% NTSC (CIE1931) | |
| Response Time : | 5/3 (Typ.)(Tr/Td) | |
| Viewing Angle : | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : | Wx:0.313; Wy:0.329 | |
| White Variation : |
| |
| Sunlight Readable : | N |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.

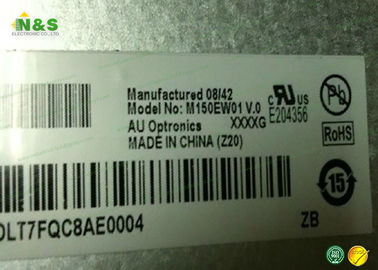

M150EW01 V0 Picture
