Product Details:
|
| Product Number: | NL6448BC33-64D | Brand: | NEC |
|---|---|---|---|
| Size Of Panel: | 10.4" | Resolution: | 640(RGB)×480 , VGA |
| Brightness: | 450 | Contrast Ratio :: | 600:1 (Typ.) |
| High Light: | nec tft lcd,nec lcd screen |
||

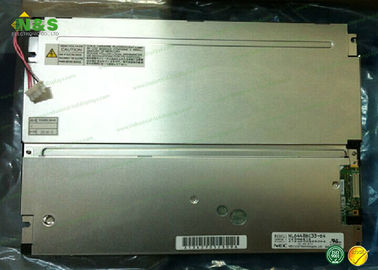

RGB 10.4 Inch 640×480 professional Nec Tft Lcd Panel screen VGA NL6448BC33-64D
Panel Brand : NEC
Panel Model : NL6448BC33-64
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 640(RGB)×480 , VGA
Surface : Clear, Hard coating (3H)
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 40%
Response Time : 6/19 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
1) One-to-one service with efficient support;
2) Protection of your design and all your private information;
3) We could supply unique items;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 5 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Lamp Position : Edge light type (Top side)
Lamp Type : CCFL
Lamp Amount : 2 pcs
Lamp Shape : Straight
Lamp Life Time : 50K(Typ.) (Hours)
Lamp Replaceable : Replaceable
Lamp RFU Model : 104LHS46
Lamp Voltage : 520V (Typ.)
Lamp Current : 2.0/5.0/5.5mA (Min./Typ./Max.)
Lamp Operating Frequency : 50/72Khz (Min./Max.)
Lamp Startup Voltage : 850/1150V (Min.)(Ta=+25/-20℃)
Interface Type : Connector
