19.0 inch Normally White M190EG02 V7 AUO LCD Panel for Desktop Monitor

19.0 inch Normally White M190EG02 V7  AUO LCD Panel for Desktop Monitor
19.0 inch Normally White M190EG02 V7  AUO LCD Panel for Desktop Monitor

Large Image :  19.0 inch Normally White M190EG02 V7 AUO LCD Panel for Desktop Monitor

Product Details:
Place of Origin: KOREA
Certification: ISO9001
Model Number: M190EG02 V7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

19.0 inch Normally White M190EG02 V7 AUO LCD Panel for Desktop Monitor

Description
Panel Type: A-Si TFT-LCD , LCM Resolution: 1280(RGB)×1024 , SXGA
Signal Interface: LVDS (2 Ch, 8-bit) , 30 Pins Contrast Ratio: 1000:1 (Typ.)
Brightness: 250 Cd/m² (Typ.) Input Voltage: 5.0V (Typ.)
High Light:

auo display panel

,

auo lcd display

19.0 inch Normally White M190EG02 V7 AUO LCD Panel for Desktop Monitor



M190EG02 V7 AUO LCD Panel  Information

Panel Brand : AUO
Panel Model : M190EG02 V7
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 19.0 inch
Resolution : 1280(RGB)×1024 , SXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 376.32×301.056 mm
Outline : 396×324×16.8 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
Response Time : 3.6/1.4 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)



Panel Size : 19.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 86 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.098×0.294 mm (H×V)
Pixel Pitch : 0.294×0.294 mm (H×V)
Weight : 2.00Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 376.32×301.056 mm (H×V)
Bezel Area : 380.32×305.06 mm (H×V)
Outline Dimension : 396×324 mm (H×V)
Outline Depth : 16.8 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
M270HVN02.1 CELL AUO 27.0" 1920×1080
M270DTN01.0 CELL AUO 27.0" 2560×1440
T320HVN05.7 CELL AUO 31.5" 1920×1080
T320HVN05.4 CELL AUO 31.5" 1920×1080
T215HVN01.2 CELL AUO 21.5" 1920×1080
B070ATN02.0 CELL AUO 7.0" 600×1024
M238DAN01.3 CELL AUO 23.8" 2560×1440
B070AAN01.0 AUO 7.0" 600×1024
M238DAN01.1 CELL AUO 23.8" 2560×1440
M270DAN02.0 CELL AUO 27.0" 2560×1440
H598DAN03.0 AUO 6.0" 1080×1920



Our Services

1. Quick and accurate reply with best service attidue to our business

2. Pofessional advise

3. Quick PI confirmation

4. Close production follow up and production process feedback

5. Safe package

6. Get feekback from your side when items arrived,

7. 24 months warranty for items



FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

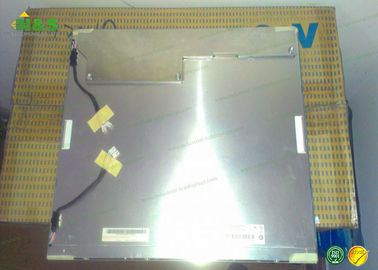

M190EG02 V7 AUO LCD Panel Picture



19.0 inch Normally White M190EG02 V7  AUO LCD Panel for Desktop Monitor 0
