Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 376.32×301.056 Mm |
|---|---|---|---|
| Brightness: | 270 Cd/m² (Typ.) | Response Time: | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G To G) |
| Input Voltage: | 5.0V (Typ.) | Outline: | 410.1×323.6×18.97 Mm |
| High Light: | auo display panel,auo lcd display |
||
19.0 inch M190EG01 V1 AUO LCD Panel 376.32×301.056 mm for Industrial Application
M190EG01 V1 Information
| Panel Brand : | AUO |
| Panel Model : | M190EG01 V1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | P-MVA, Normally Black, Transmissive |
| Active Area : | 376.32×301.056 mm |
| Outline : | 410.1×323.6×18.97 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 270 cd/m² (Typ.) |
| Contrast Ratio : | 1300:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 2.8/3.0Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 380.32×305.06 mm (H×V) |
| Outline Dimension : | 410.1×323.6 mm (H×V) |
| Outline Depth : | 15.0/18.97 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

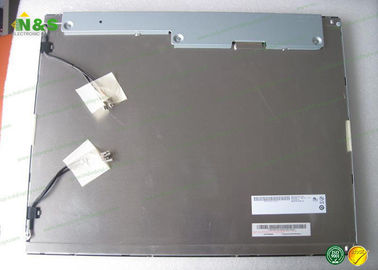

M190EG01 V1 AUO LCD Panel Picture
