Product Details:
|
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) | Surface: | Antiglare, Hard Coating (3H) |
|---|---|---|---|
| Outline: | 430.4×254.6×10.4 Mm | Signal Interface: | LVDS (1 Ch, 8-bit) , 30 Pins |
| High Light: | auo lcd screen,auo lcd display |
||
18.5 inch M185XW01 VD AUO LCD Panel Normally White for Desktop Monitor
M185XW01 VD Detail
| Panel Brand : | AUO |
| Panel Model : | M185XW01 VD |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 18.5 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 409.8×230.4 mm |
| Outline : | 430.4×254.6×10.4 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 68% |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 10S4P WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Company Strength:
1> ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
| Panel Size : | 18.5 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.100×0.300 mm (H×V) |
| Pixel Pitch : | 0.300×0.300 mm (H×V) |
| Weight : | 1.29Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 409.8×230.4 mm (H×V) |
| Bezel Area : | 413.4×234.0 mm (H×V) |
| Outline Dimension : | 430.4×254.6 mm (H×V) |
| Outline Depth : | 6.9/10.4 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| H598QAN01.0 | AUO | 6.0" | 1440×2560 |
| T430HVN01.2 CELL | AUO | 43" | 1920×1080 |
| H495TAN01.2 | AUO | 5.0" | 720×1280 |
| T650QVN04.5 CELL | AUO | 65" | 3840×2160 |
| M320DVN01.0 CELL | AUO | 32.0" | 2560×1440 |
| M238HVN01.0 CELL | AUO | 23.8" | 1920×1080 |
| M238HVN01.2 CELL | AUO | 23.8" | 1920×1080 |
| T320XVN02.F CELL | AUO | 31.5" | 1366×768 |
| T430HVN01.6 CELL | AUO | 43" | 1920×1080 |
| B101EAN01.2 CELL | AUO | 10.1" | 1280×800 |

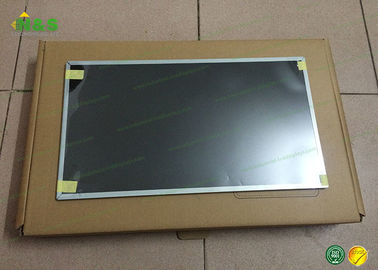

M185XW01 VD AUO LCD Panel Picture
