Product Details:
|
| Contrast Ratio: | 500:1 (Typ.) | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 , WXGA | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd screen |
||
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Products Information:
| Panel Size : | 12.1 inch | |
| Dot Resolution : | 1280(RGB)×800 (WXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 124 PPI | |
| Aspect Ratio : | 16:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.068×0.204 mm (H×V) | |
| Pixel Pitch : | 0.204×0.204 mm (H×V) | |
| Weight : |
| |
| Surface : | Antiglare, Hard coating (2H), Antireflection | |
| Active Area : | 261.12×163.2 mm (H×V) | |
| Bezel Area : | 265.1×167.2 mm (H×V) | |
| Outline Dimension : | 276.8×180 mm (H×V) | |
| Outline Depth : | 3.9/6.8 (Typ./Max.) mm | |
| Holes & Brackets : | Side mounting holes (9-M2) on left, right, up bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Display Mode : |
| |
| Brightness : | 300 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Color Gamut : | 42% NTSC (CIE1931) | |
| Response Time : | 30 (Typ.)(Tr+Td) | |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : |
| |
| White Variation : | 1.25/1.67 (Max.)(5/13 points) | |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HTT22QC2-S01 | HYDIS | 2.2" | 176×220 |
| HV121X02-101 | HYDIS | 12.1" | 1024×768 |
| HX104X03-101 | HYDIS | 10.4" | 1024×768 |
| HVT35HV1-DE0 | HYDIS | 3.5" | 320×480 |
| HVA40WV2-D02 | HYDIS | 4.0" | 480×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

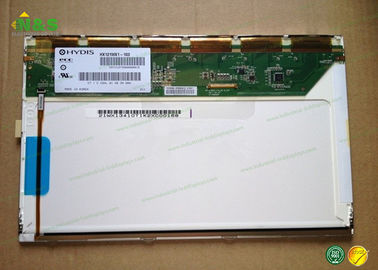

HX121WX1-103 Picture
