Product Details:
|
| Contrast Ratio: | 700:1 (Typ.)(Transmissive) | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 , WXGA | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd panel |
||
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Products Information:
| Panel Size : | 12.1 inch | |
| Dot Resolution : | 1280(RGB)×800 (WXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 124 PPI | |
| Aspect Ratio : | 16:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.068×0.204 mm (H×V) | |
| Pixel Pitch : | 0.204×0.204 mm (H×V) | |
| Weight : |
|
|
| Surface : | Hard coating (2H), Antireflection | |
| Active Area : | 261.12×163.2 mm (H×V) | |
| Bezel Area : | 265.1×167.2 mm (H×V) | |
| Outline Dimension : | 276.8×180 mm (H×V) | |
| Outline Depth : | 3.9/6.8 (Typ./Max.) mm | |
| Holes & Brackets : | Side mounting holes (9-M2) on left, right, up bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
|
|
||
| Brightness : | 300 cd/m² (Typ.) | ||
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) | ||
| Display Color : | 262K (6-bit) | ||
| Color Gamut : | 42% NTSC (CIE1931) | ||
| Response Time : | 30 (Typ.)(Tr+Td) | ||
| Viewing Angle : | 90/90/90/90 (Typ.)(CR≥10) (L/R/U/D) | ||
| Viewing Direction : | Symmetry | ||
| White color Chromaticity : | Wx:0.313; Wy:0.329 | ||
| White Variation : |
|
||
| Reflectance Ratio : | 2.5/3.5% (Min./Typ.) | ||
| Sunlight Readable : | Y |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HVA40WV1-D02 | HYDIS | 4.0" | 480×800 |
| HV070WS1-P01 | HYDIS | 7.0" | 1024×600 |
| HV070WS1-P00 | HYDIS | 7.0" | 1024×600 |
| HVT35HV1-DE1 | HYDIS | 3.5" | 320×480 |
| HVA37WV1-D01 | HYDIS | 3.7" | 480×800 |
| HVA37WV1-DE1 | HYDIS | 3.7" | 480×800 |
| HX104X01-211 | HYDIS | 10.4" | 1024×768 |
| HVA40WV1-D00 | HYDIS | 4.0" | 480×800 |
| HVA35WV1-D00 | HYDIS | 3.5" | 480×800 |
| HV070WS1-G00 | HYDIS | 7.0" | 1024×600 |
| HV070WS1-D00 | HYDIS | 7.0" | 1024×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

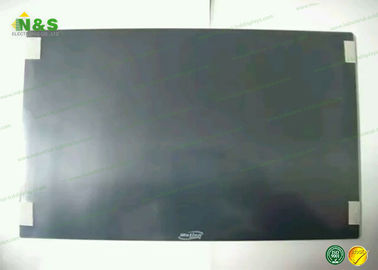

HX121WX1-100 Picture
