Product Details:
|
| Contrast Ratio: | 600:1 (Typ.) | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 , XGA | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd panel |
||
Products Information:
| Panel Size : | 10.4 inch | |
| Dot Resolution : | 1024(RGB)×768 (XGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 123 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) | |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare | |
| Active Area : | 210.432×157.824 mm (H×V) | |
| Bezel Area : | 216.6×162.4 mm (H×V) | |
| Outline Dimension : | 238.6×173.2 mm (H×V) | |
| Outline Depth : | 4.0/6.8 (Typ./Max.) mm | |
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right slugs | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 300 cd/m² (Typ.) | |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Color Gamut : | 40% NTSC (CIE1931) | |
| Response Time : | 36 (Typ.)(Tr+Td) | |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : |
|
|
| White Variation : | 1.33/1.54 (Typ./Max.)(13 points) | |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HVA40WV1-D02 | HYDIS | 4.0" | 480×800 |
| HV070WS1-P01 | HYDIS | 7.0" | 1024×600 |
| HV070WS1-P00 | HYDIS | 7.0" | 1024×600 |
| HVT35HV1-DE1 | HYDIS | 3.5" | 320×480 |
| HVA37WV1-D01 | HYDIS | 3.7" | 480×800 |
| HVA37WV1-DE1 | HYDIS | 3.7" | 480×800 |
| HX104X01-211 | HYDIS | 10.4" | 1024×768 |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

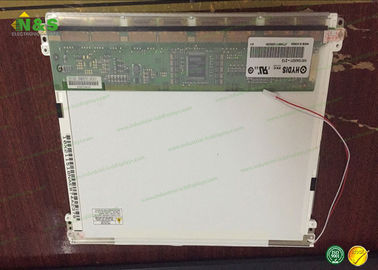

HX104X01-210 Picture
