Product Details:
|
| Resolution: | 1366(RGB)×768 , WXGA | Active Are: | 409.8×230.4 Mm |
|---|---|---|---|
| Response Time: | 3.6/1.4 (Typ.)(Tr/Td) | Brightness: | 200 Cd/m² (Typ.) |
| Input Voltage: | 5.0V (Typ.) | Surface: | Antiglare, Hard Coating (3H) |
| Outline: | 430.4×254.6×10.3 Mm | Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | auo display panel,auo lcd screen |
||
Antiglare Flat Rectangle Auo Lcd Panel Repair M185XTN01.0 for Desktop Monitor
M185XTN01.0 Information
| Panel Brand : | AUO |
| Panel Model : | M185XTN01.0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 18.5 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 409.8×230.4 mm |
| Outline : | 430.4×254.6×10.3 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 10S4P WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| B070EAN02.0 CELL | AUO | 7.0" | 800×1280 |
| M320QAN01.0 CELL | AUO | 32.0" | 3840×2160 |
| H546TAN02.0 | AUO | 5.5" | 720×1280 |
| H598TAN01.0 | AUO | 6.0" | 720×1280 |
| H546DAN03.3 | AUO | 5.5" | 1080×1920 |
| H497DAN02.0 | AUO | 5.0" | 1080×1920 |
| H495TAN01.1 | AUO | 5.0" | 720×1280 |
| H496TAN01.0 | AUO | 5.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 18.5 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.100×0.300 mm (H×V) |
| Pixel Pitch : | 0.300×0.300 mm (H×V) |
| Weight : | 1.29Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 409.8×230.4 mm (H×V) |
| Bezel Area : | 413.4×234.0 mm (H×V) |
| Outline Dimension : | 430.4×254.6 mm (H×V) |
| Outline Depth : | 7.8/10.3 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

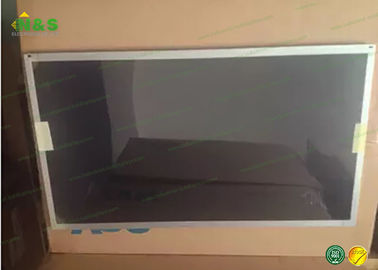

M185XTN01.0 AUO LCD Panel Picture
