Product Details:
|
| Outline Dimension: | 430.37×254.6 Mm (H×V) | Holes & Brackets: | Side Mounting Holes (4-M3) On Left, Right Bezel |
|---|---|---|---|
| Dot Pitch: | 0.100×0.300 Mm (H×V) | Aspect Ratio: | 16:9 (H:V) |
| Display Colors: | 16.7M (6-bit + Hi-FRC) , CIE1931 72% | Active Area: | 409.8×230.4 Mm |
| High Light: | tft lcd display,lcd display panel |
||
60Hz M185BGE - L10 Desktop Monitor innolux lcd screen 16 / 9 Aspect Ratio
M185BGE-L10 Specification
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | M185BGE-L10 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 18.5 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 409.8×230.4 mm |
| Outline : | 430.37×254.6×11 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 strings WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
| Panel Size : | 18.5 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.100×0.300 mm (H×V) |
| Pixel Pitch : | 0.300×0.300 mm (H×V) |
| Weight : | 1.53/1.60Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 409.8×230.4 mm (H×V) |
| Bezel Area : | 413.4×234.0 mm (H×V) |
| Outline Dimension : | 430.37×254.6 mm (H×V) |
| Outline Depth : | 10.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| N156BGE-PB1 | Innolux | 15.6" | 1366×768 |
| PP050IC-01F | Innolux | 5.0" | 720×1280 |
| P060DDZ-ZZ1 | Innolux | 6.0" | 800×1280 |
| ME236NA-01A | Innolux | 23.6" | 1920×1080 |
| F055A07-601 | Innolux | 5.5" | 720×1280 |
| F050A07-6T2 | Innolux | 5.0" | 720×1280 |
| V650HP1-PS6 Rev.C6 | Innolux | 65" | 1920×1080 |
| P101LCA-3P1 | Innolux | 10.1" | 1920×1200 |
| V650HP2-PS5 | Innolux | 65" | 1920×1080 |
| N156HGE-DB1 | Innolux | 15.6" | 1920×1080 |
| V500DJ4-QS1 | Innolux | 50" | 3840×2160 |
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare

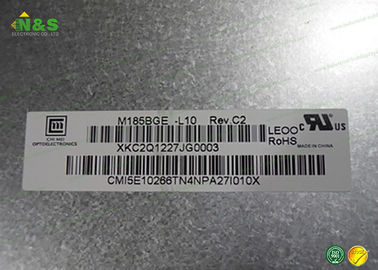

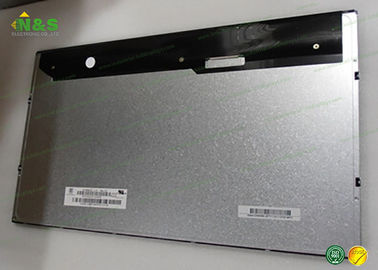

M185BGE-L10 Innolux LCD Panel Picture
