Product Details:
|
| Panel Brand: | Toshiba Matsushita | Panel Model :: | LTA057A344F |
|---|---|---|---|
| Panel Type :: | A-Si TFT-LCD , LCM | Panel Size :: | 5.7 Inch |
| High Light: | industrial lcd screen,industrial lcd panel |
||

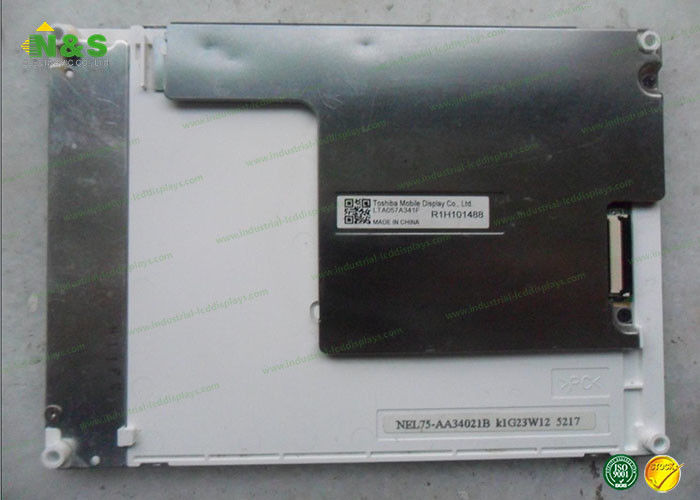

5.7 inch LTA057A344F TOSHIBA with 115.2×86.4 mm Active Area Normally White
LTA057A344F Specification
| Panel Size : | 5.7 inch |
|---|---|
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 119.0×90.2 mm (H×V) |
| Outline Dimension : | 144×104.6 mm (H×V) |
| Outline Depth : | 9.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-Φ1.6); Rear mounting Pole (4-Φ2.6); Face mounting holes (2 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
LTA057A344F Specification
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 320 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 50/50 (Max.)(Tr/Td) |
| Viewing Angle : | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable : | N |
LTA057A344F Specification
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 6S3P | |||||
| Lamp Shape : | 3 strings | |||||
| Lamp Life Time : | 20K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Voltage : | 19.2V (Typ.) | |||||
| Lamp Current : | 15/25mA (Typ./Max.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM06B-SHLS-TF(LF)(SN) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CACACA | |
| Lamp Driver Board : | No | |||||
