Product Details:
Place of Origin: korea
Brand Name: Sharp
Certification: ISO9001
Model Number: LQ043T1DG01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

LQ043T1DG01 sharp lcd module , 4.3 inch digital flat panel lcd display 95.04×53.856 mm

Description
Panel Brand: Sharp Panel Model: LQ043T1DG01
Panel Type: A-Si TFT-LCD , LCM Panel Size: 4.3 Inch
Resolution: 480(RGB)×272 , WQVGA Display Mode: TN, Normally White, Transmissive
High Light:

sharp lcd display panels

,

sharp lcd flat screen

4.3 inch Normally White LQ043T1DG01 Sharp LCD Panel with 95.04×53.856 mm



LQ043T1DG01 Specification

Panel Brand : SHARP
Panel Model : LQ043T1DG01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 4.3 inch
Resolution : 480(RGB)×272 , WQVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 95.04×53.856 mm
Outline : 105.5×67.2 mm
Surface : Antiglare, Hard coating (2H)
Brightness : 500 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.)
Display Colors : 16.7M (8-bit)
Response Time : 30/30 (Typ.)(Tr/Td)
Viewing Angle : 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 9S1P WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 8-bit) , 40 pins
Input Voltage : 3.3/5.0V (Typ.)(VCC/AVDD)



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
LK315T3HC1K SHARP 31.5" 1366×768
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800



Panel Size : 4.3 inch
Dot Resolution : 480(RGB)×272 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 128 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.066×0.198 mm (H×V)
Pixel Pitch : 0.198×0.198 mm (H×V)
Weight : 62g (Typ.)
Surface : Antiglare, Hard coating (2H)
Active Area : 95.04×53.856 mm (H×V)
Outline Dimension : 105.5×67.2 mm (H×V)
Outline Depth : 5.05 (Typ.) mm
Landscape or Portrait : Landscape type
Touch Panel : Embeded (4-wire Resistive)



Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.



FAQ

Q1: What's the quality of your Hard Disk?

A: Various brands for hard disk etc. We are available to meet your different requirements.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q4: How long is the lead time?

A: The lead time is about 2-3 working days after receipt of payment.

Q5: Do you accept sample order?

A:Yes, sample order is welcome.

Q6: How can I get the quotation?

A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

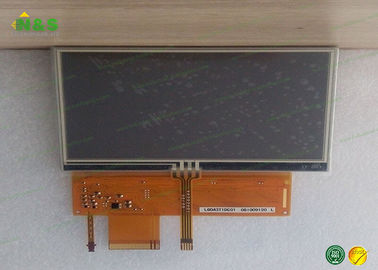

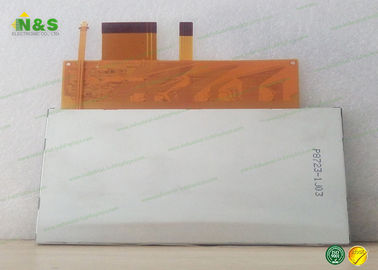

LQ043T1DG01 Picture
