Product Details:
|
| Panel Brand :: | Toshiba Matsushita | Panel Model :: | LTA035A350F |
|---|---|---|---|
| Panel Type :: | A-Si TFT-LCD , LCM | Panel Size :: | 3.5 Inch |
| High Light: | industrial touch screen display,industrial lcd screen |
||

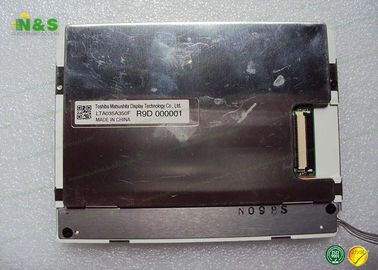

3.5 inch LTA035A350F TOSHIBA with 71.04×53.28 mm Active Area
LTA035A350F Specification
| Panel Size : | 3.5 inch |
|---|---|
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 114 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.074×0.222 mm (H×V) |
| Pixel Pitch : | 0.222×0.222 mm (H×V) |
| Weight : | 60g (Typ.) |
| Active Area : | 71.04×53.28 mm (H×V) |
| Bezel Area : | 73.0×55.2 mm (H×V) |
| Outline Dimension : | 90×72 mm (H×V) |
| Outline Depth : | 7.0±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M2; Left/Right side) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA035A350F Specification
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable : | N |
LTA035A350F Specification
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 4S2P | |||||
| Lamp Shape : | 2 strings | |||||
| Lamp Life Time : | 20K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Voltage : | 12.0/12.4/13.2V (Min./Typ./Max.) | |||||
| Lamp Current : | 15mA (Typ.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM05B-SURS-TF(LF)(SN) | 0.8 mm | 5 pins | 1 pcs | BLE-5PINS-ACACG | |
| Lamp Driver Board : | No | |||||
