Product Details:
|
| Active Area: | 196.608×147.456 Mm | Outline: | 210.35×166.25×5.45 Mm |
|---|---|---|---|
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | Panel Size :: | 9.7 Inch |
| High Light: | lg display panel,lg lcd display |
||
LG LCD Panel LP097X02-SLQA 9.7 inch with 196.608×147.456 mm for Pad,Tablet panel
Product Information:
| Panel Size : | 9.7 inch |
|---|---|
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 132 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.064×0.192 mm (H×V) |
| Pixel Pitch : | 0.192×0.192 mm (H×V) |
| Weight : | 160g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 196.608×147.456 mm (H×V) |
| Bezel Area : | 201.40×152.26 mm (H×V) |
| Outline Dimension : | 210.35×166.25 mm (H×V) |
| Outline Depth : | 3.4/5.45 (Max.) mm |
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | S-IPS, Normally Black, Transmissive |
|---|---|
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.326; Wy:0.339 |
| White Variation : | 1.45/1.75 (Typ./Max.)(5 points) |
| Sunlight Readable : | N |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details:
1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

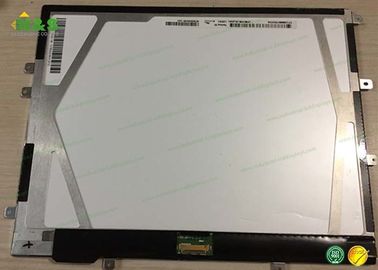

Picture of LG LCD Panel LP097X02-SLQA
