Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.8 Inch |
|---|---|---|---|
| Resolution: | 800×480(RGB) , WVGA | Display Mode: | TN, Normally White, TMR |
| Active Area: | 103.8×62.28 Mm | Outline: | 118.2×74.28 Mm |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

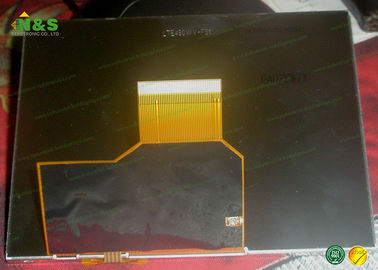

LTE480WV-F01 Samsung LCD Panel Samsung 4.8 inch with 103.8×62.28 mm
LTE480WV-F01 Information
| Panel Size : | 4.8 inch |
| Dot Resolution : | 800×480(RGB) (WVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 195 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.12975×0.04325 mm (H×V) |
| Pixel Pitch : | 0.12975×0.12975 mm (H×V) |
| Active Area : | 103.8×62.28 mm (H×V) |
| Outline Dimension : | 118.2×74.28 mm (H×V) |
| Outline Depth : | 3.93±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | TN, Normally White, TMR |
| Brightness : | 280 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 22.5 (Typ.)(Tr+Td) |
| Viewing Angle : | 65/65/60/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| Sunlight Readable : | Y |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS497QH05 | Samsung | 5.0" | 720×1280 |
| AMS465GS52 | Samsung | 4.7" | 720×1280 |
| AMS465GS51 | Samsung | 4.7" | 720×1280 |
| AMS465GS47 | Samsung | 4.7" | 720×1280 |
| AMS477GV11 | Samsung | 4.8" | 720×1280 |
