Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | STN, Normally Black, Transmissive |
| Active Area: | 203.98×152.98 Mm | Outline: | 236.8×172.5×6.8 Mm |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

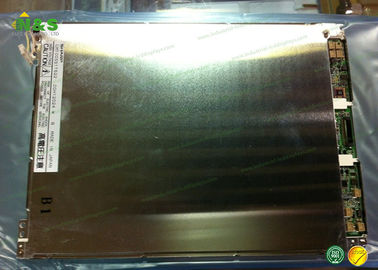

LM100SS1T522 Sharp LCD Panel SHARP 10.0 inch 800×600 100 with 203.98×152.98 mm Active Area
LM100SS1T522 Information
| Panel Size : | 10.0 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 99 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.085×0.255 mm (H×V) |
| Pixel Pitch : | 0.255×0.255 mm (H×V) |
| Weight : | 340g |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 203.98×152.98 mm (H×V) |
| Bezel Area : | 207.0×156.0 mm (H×V) |
| Outline Dimension : | 236.8×172.5 mm (H×V) |
| Outline Depth : | 6.5±0.3 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | STN, Normally Black, Transmissive |
| Brightness : | 100 cd/m² (Typ.) |
| Contrast Ratio : | 50 : 1 (Typ.) (Transmissive) |
| Display Color : | Color () |
| Response Time : | 220/80 (Typ.)(Tr/Td) |
| Viewing Angle : | 30/30/15/25 (Typ.)(CR≥5) (L/R/U/D) |
| White color Chromaticity : | Wx:0.300; Wy:0.340 |
| Sunlight Readable : | Y |
