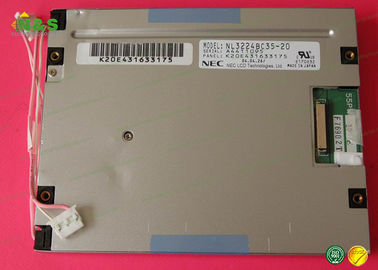

NL3224BC35-20 5.5 inch lcd display tft LCM 320×240 Normally White

NL3224BC35-20 5.5 inch lcd display tft LCM 320×240 Normally White
NL3224BC35-20 5.5 inch lcd display tft LCM 320×240 Normally White

Large Image :  NL3224BC35-20 5.5 inch lcd display tft LCM 320×240 Normally White

Product Details:
Place of Origin: KOREA
Brand Name: NEC
Certification: ISO9001
Model Number: NL3224BC35-20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

NL3224BC35-20 5.5 inch lcd display tft LCM 320×240 Normally White

Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 5.5 Inch
Resolution: 320(RGB)×240 , QVGA Display Mode: TN, Normally White, Transmissive
Active Area: 111.36×83.52 Mm Outline: 134×104.5×13 Mm
High Light:

nec tft lcd

,

nec lcd screen

NL3224BC35-20 NEC LCD Panell NLT NLT 5.5 inch LCM 320×240 Normally White

NL3224BC35-20 Information


Panel Size :5.5 inch
Dot Resolution :320(RGB)×240 (QVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :72 PPI
Aspect Ratio :4:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.116×0.348 mm (H×V)
Pixel Pitch :0.348×0.348 mm (H×V)
Weight :210/220g (Typ./Max.)
Surface :Antiglare, Hard coating (3H), Antireflection
Active Area :111.36×83.52 mm (H×V)
Bezel Area :116.4×88.5 mm (H×V)
Outline Dimension :134×104.5 mm (H×V)
Outline Depth :12.5±0.5 mm
Holes & Brackets :Rear mounting holes (4-M3)
Landscape or Portrait :Landscape type
Touch Panel :Without
Display Mode :TN, Normally White, Transmissive
Brightness :400 cd/m² (Typ.)
Contrast Ratio :400 : 1 (Typ.) (Transmissive)
Display Color :262K (6-bit)
Color Gamut :50% NTSC (CIE1931)
Response Time :5/25 (Typ.)(Tr/Td)
Viewing Angle :55/55/50/40 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :12 o'clock
White color Chromaticity :Wx:0.305; Wy:0.330
White Variation :1.25/1.35 (Typ./Max.)(5 points)
Sunlight Readable :N
