Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 19.0 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024 , SXGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 376.32×301.06 Mm | Outline: | 396×324×11.4 Mm |
| High Light: | auo lcd screen,auo lcd display |
||

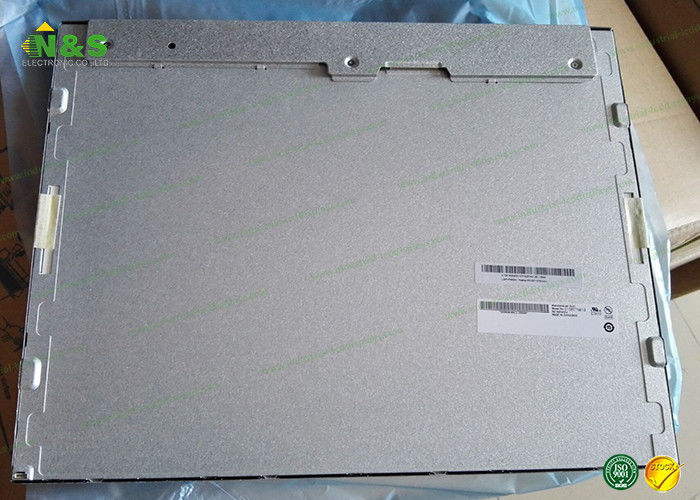

M190ETN01.0 thin 19.0 inch tft lcd module / AUO lcd display replacement
M190ETN01.0 Basic Information
| Panel Model | M190ETN01.0 |
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,19.0 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | TCO 6.0 Compliance |
M190ETN01.0 Mechanical Features
| Dot Resolution | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 86 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.098×0.294 mm (H×V) |
| Pixel Pitch | 0.294×0.294 mm (H×V) |
| Weight | 1.80Kgs (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 376.32×301.06 mm (H×V) |
| Bezel Area | 380.0×305.08 mm (H×V) |
| Outline Dimension | 396×324 mm (H×V) |
| Outline Depth | 11.4 (Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
