Product Details:
|
| Panel Brand: | Kyocera | Panel Model: | KCS072VG1MB-G42 |
|---|---|---|---|
| Panel Type: | CSTN-LCD , LCM | Panel Size: | 7.2 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | STN, Normally Black, Transmissive |
| High Light: | anti glare lcd screen,small lcd panel |
||
KCS072VG1MB-G42 Kyocera LCD Panel 7.2 inch with 145.9×109.42 mm Active Area
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
KCS072VG1MB-G42 Product Information
| Panel Brand : | Kyocera | |
| Panel Model : | KCS072VG1MB-G42 | |
| Panel Type : | CSTN-LCD , LCM | |
| Panel Size : | 7.2 inch | |
| Resolution : | 640(RGB)×480 , VGA | |
| Display Mode : | STN, Normally Black, Transmissive | |
| Active Area : | 145.9×109.42 mm | |
| Outline : | 179.3×130.5×6.5 mm | |
| Surface : | ||
| Brightness : | ||
| Contrast Ratio : | ||
| Display Colors : | Color | |
| Response Time : | 220/110 (Typ.)(Tr/Td) | |
| Viewing Angle : | ||
| Frequency : | 75Hz | |
| Lamp Type : | 1 pcs CCFL Optional | |
| Signal Interface : | Parallel Data (8-bit) , 31 pins | |
|
3.3V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 7.2 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 111 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.076×0.228 mm (H×V) |
| Pixel Pitch : | 0.228×0.228 mm (H×V) |
| Weight : | 170g (Typ.) |
| Active Area : | 145.9×109.42 mm (H×V) |
| Bezel Area : | 147.90×111.42 mm (H×V) |
| Outline Dimension : | 179.3×130.5 mm (H×V) |
| Outline Depth : | 6.0±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packing & Delivery for our LCD Screen Panel Replacements:

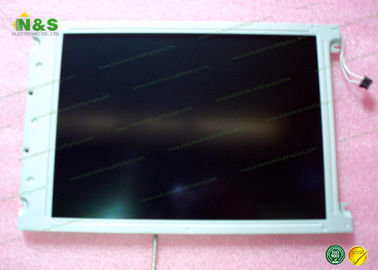

KCS072VG1MB-G42 Picture
