Product Details:
|
| Panel Brand: | Kyocera | Panel Model: | KCS057QV1AD-G23 |
|---|---|---|---|
| Panel Type: | CSTN-LCD , LCM | Panel Size: | 5.7 Inch |
| Resolution: | 320(RGB)×240 , QVGA | Display Mode: | STN, Normally Black, Transmissive |
| High Light: | anti glare lcd screen,digital lcd display |
||
KCS057QV1AD-G23 Kyocera LCD Panel 5.7 inch LCM 320×240 160 40:1 Color CCFL Parallel Data
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
KCS057QV1AD-G23 Product Information
| Panel Brand : | Kyocera | |
| Panel Model : | KCS057QV1AD-G23 | |
| Panel Type : | CSTN-LCD , LCM | |
| Panel Size : | 5.7 inch | |
| Resolution : | 320(RGB)×240 , QVGA | |
| Display Mode : | STN, Normally Black, Transmissive | |
| Active Area : | 115.18×86.38 mm | |
| Outline : | 154.6×114.8×10.8 mm | |
| Surface : | Glare (Haze 0%) | |
| Brightness : | 160 cd/m² (Typ.) | |
| Contrast Ratio : | 40:1 (Typ.) | |
| Display Colors : | Color | |
| Response Time : | 220/110 (Typ.)(Tr/Td) | |
| Viewing Angle : | 50/50/30/30 (Typ.)(CR≥2) (L/R/U/D) | |
| Frequency : | 75Hz | |
| Lamp Type : | 1 pcs CCFL Optional | |
| Signal Interface : | Parallel Data (8-bit) , 15 pins | |
|
5.0V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | 240g (Typ.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 115.18×86.38 mm (H×V) |
| Bezel Area : | 120.2×91.4 mm (H×V) |
| Outline Dimension : | 154.6×114.8 mm (H×V) |
| Outline Depth : | 10.3±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day

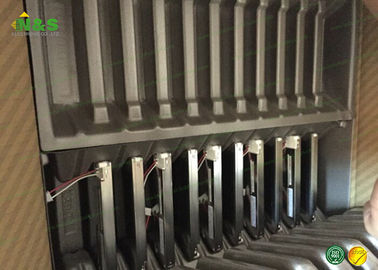

KCS057QV1AD-G23 Picture
