Product Details:
|
| Panel Brand: | Kyocera | Panel Model: | KCG075VG2BE-G00 |
|---|---|---|---|
| Panel Type: | CSTN-LCD , LCM | Panel Size: | 7.5 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | STN, Normally Black, Transmissive |
| High Light: | small lcd panel,digital lcd display |
||
KCG075VG2BE-G00 Kyocera LCD Panel 7.5 inch with 151.66×113.74 mm Active Area
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
KCG075VG2BE-G00 Specification
| Panel Brand : | Kyocera | |
| Panel Model : | KCG075VG2BE-G00 | |
| Panel Type : | CSTN-LCD , LCM | |
| Panel Size : | 7.5 inch | |
| Resolution : | 640(RGB)×480 , VGA | |
| Display Mode : | STN, Normally Black, Transmissive | |
| Active Area : | 151.66×113.74 mm | |
| Outline : | 184×139.8×13.2 mm | |
| Surface : | Glare (Haze 0%) | |
| Brightness : | 200 cd/m² (Typ.) | |
| Contrast Ratio : | 30:1 (Typ.) | |
| Display Colors : | Color | |
| Response Time : | 270/280 (Typ.)(Tr/Td) | |
| Viewing Angle : | 40/40/20/40 (Typ.)(CR≥2) (L/R/U/D) | |
| Frequency : | 75Hz | |
| Lamp Type : | 2 pcs CCFL Optional | |
| Signal Interface : | Parallel Data (8-bit) , 20 pins | |
|
3.3/5.0V (Typ.)(VDD) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AGN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-ACN | Kyocera | 2.8" | 128×64 |
| F-55471GNFJ-SLW-AMN | Kyocera | 5.2" | 240×64 |
| Panel Size : | 7.5 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 107 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.079×0.237 mm (H×V) |
| Pixel Pitch : | 0.237×0.237 mm (H×V) |
| Weight : | 280g (Typ.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 151.66×113.74 mm (H×V) |
| Bezel Area : | 156.3×118.4 mm (H×V) |
| Outline Dimension : | 184×139.8 mm (H×V) |
| Outline Depth : | 8.5/13.2 (Typ.Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

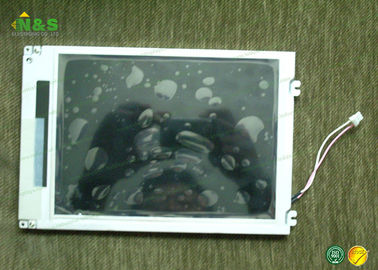

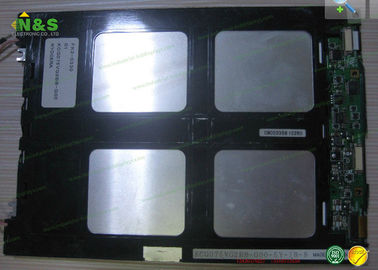

KCG075VG2BE-G00 Picture
