Product Details:
|
| Panel Brand: | Lumineq | Panel Model: | EL320.240.36 HB |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.7 Inch |
| Resolution: | 320×240 , QVGA | Display Mode: | NA |
| High Light: | optrex lcd panel,monochrome lcd panel |
||
EL320.240.36 HB Lumineq LCD Panel 5.7 inch with 115.1×86.3 mm for Industrial Application
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
EL320.240.36 HB Specification
| Panel Brand : | Lumineq |
| Panel Model : | EL320.240.36 HB |
| Panel Type : | EL , EL |
| Panel Size : | 5.7 inch |
| Resolution : | 320×240 , QVGA |
| Active Area : | 115.1×86.3 mm |
| Outline : | 148.1×104.7 mm |
| Surface : | |
| Brightness : | 150 cd/m² (Typ.) |
| Contrast Ratio : | 90 : 1 (Typ.) |
| Display Colors : | Mono(Yellow) (1-bit) |
| Viewing Angle : | 89/89/89/89 (Typ.) (L/R/U/D) |
| Frequency : | 120Hz |
| Signal Interface : | Parallel Data (1ch, 4-bit) , 26 pins |
| Input Voltage : | 5/12V (Typ.)(VL/VH) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| EL160.80.50 LC CC | Lumineq | 3.5" | 160×80 |
| EL320.240.36 LK | Lumineq | 5.7" | 320×240 |
| ELT160.80.50 | Lumineq | 3.5" | 160×80 |
| ELT256.120.90 | Lumineq | 10.0" | 256×120 |
| EL160.120.39 CC | Lumineq | 3.1" | 160×120 |
| EL160.120.39 | Lumineq | 3.1" | 160×120 |
| EL160.80.50 ET CC | Lumineq | 3.5" | 160×80 |
| EL160.80.50 ET | Lumineq | 3.5" | 160×80 |
| EL160.80.50 IN | Lumineq | 3.5" | 160×80 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320×240 (QVGA) |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.36×0.36 mm (H×V) |
| Pixel Pitch : | 0.36×0.36 mm (H×V) |
| Weight : | 183g |
| Active Area : | 115.1×86.3 mm (H×V) |
| Outline Dimension : | 148.1×104.7 mm (H×V) |
| Outline Depth : | 20 mm |
| Holes & Brackets : | Face mounting holes (3-Φ3.2, 2-R1.6×4.2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

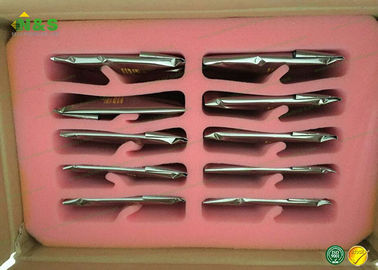

EL320.240.36 HB Picture
