Product Details:
|
| Model:: | TM060RBH01 | MFG:: | Tianma LCD Displays |
|---|---|---|---|
| Resolution :: | 800×480 | Brightness :: | 280 |
| C/R:: | 500:1 | Backlight :: | WLED |
| High Light: | black and white lcd display,lcd display white screen |
||

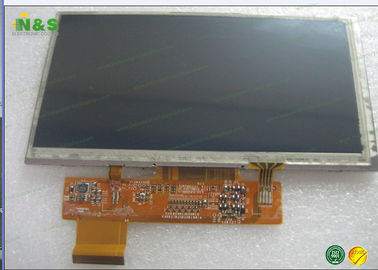

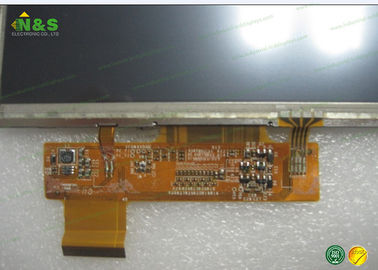

TIANMA 6.0 inch HD TFT LCD Screen with Touch Panel TM060RBH01 WVGA 800(RGB)*480 S6000TV Screen
Panel Brand: TIANMA
Panel Model: TM060RBH01
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 6.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 280 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 16.0M (8-bit)
Response Rime: 20 (Typ.) (Tr/Td)
Viewing Angle: 70/70/60/70 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 7S3P WLED
Signal Interface: TTL (1 ch, 8-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All MP4 PMP Panel, All Digital Photo Frame Panel, All Portable DVD Player Panel, All Car Display Panel
| Panel Brand : | TIANMA |
| Panel Model : | TM060RBH01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 133.2×73.8 mm |
| Outline : | 145.5×87.8 mm |
| Surface : | Antiglare |
| Brightness : | 280 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 7S3P WLED Without Driver |
| Signal Interface : | TTL (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 2~10 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
