Product Details:
|
Contrast Ratio: | 600:1 (Typ.) | Panel Size: | 21.5 Inch |
---|---|---|---|
Resolution: | 1920(RGB)×1080 , FHD | Surface: | Antiglare (Haze 25%), Hard Coating (3H) |
Frequency: | 60Hz | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
High Light: | industrial touch screen display,industrial lcd panel |

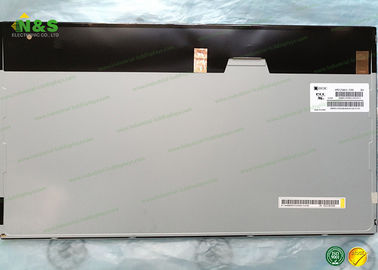

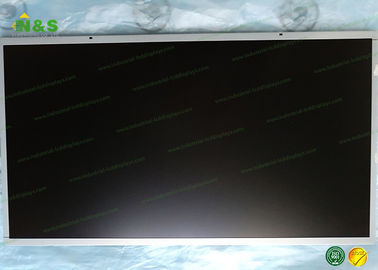

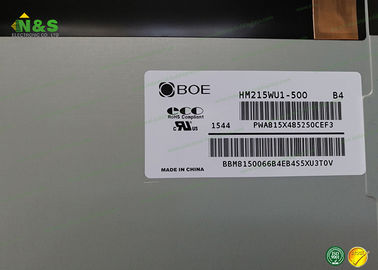

HM215WU1-500 21.5 inch 1920(RGB)×1080 FHD Normally White with 476.64×268.11 mm Active Area
.
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
MV236FHB-N10 | BOE | 24.0" | 1920×1080 |
HR270QH3-100 | BOE | 27.0" | 2560×1440 |
BF045WVQ-401 | BOE | 4.5" | 480×854 |
BV055HDE-N40 | BOE | 5.5" | 720×1280 |
TV080WXB-NV0 | BOE | 8.0" | 800×1280 |
AV080WVB-NW2 | BOE | 8.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Products Information:
Panel Size : | 21.5 inch |
Dot Resolution : | 1920(RGB)×1080 (FHD) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 102 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.08275×0.24825 mm (H×V) |
Pixel Pitch : | 0.24825×0.24825 mm (H×V) |
Weight : | 1.45Kgs (Typ.) |
Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Active Area : | 476.64×268.11 mm (H×V) |
Bezel Area : | 479.8×271.3 mm (H×V) |
Outline Dimension : | 495.6×292.2 mm (H×V) |
Outline Depth : | 7.7/10.7 (Typ./Max.) mm |
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
HM215WU1-500 Information
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 200 cd/m² (Typ.) |
Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M (6-bit + Hi-FRC) |
Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
Viewing Angle : | 45/45/25/40 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Sunlight Readable : | N |
