Product Details:
|
| Contrast Ratio: | 600:1 (Typ.) | Panel Size: | 20.0 Inch |
|---|---|---|---|
| Resolution: | 1600(RGB)×900 , HD+ | Surface: | Antiglare (Haze 25%), Hard Coating (3H) |
| Frequency: | 60Hz | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | industrial touch screen display,industrial lcd panel |
||

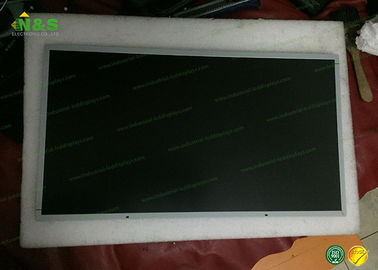

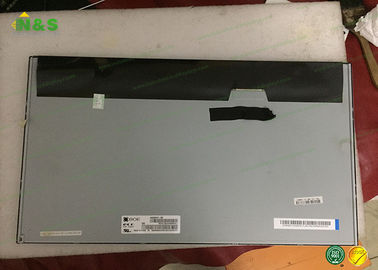

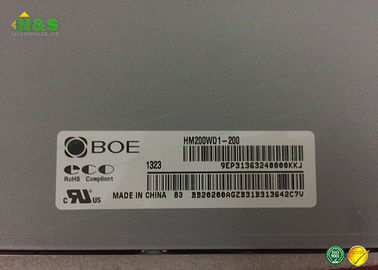

HM200WD1-200 20.0 inch, 1600(RGB)×900 , HD+ , 8-bit, LVDS, 2D, WLED, Flat, LCM Hot Model Antiglare (Haze 25%)
| Panel Size : | 20.0 inch |
| Dot Resolution : | 1600(RGB)×900 (HD+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.09225×0.27675 mm (H×V) |
| Pixel Pitch : | 0.27675×0.27675 mm (H×V) |
| Weight : | 1.70Kgs (Typ.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 442.8×249.075 mm (H×V) |
| Bezel Area : | 446.8×253.1 mm (H×V) |
| Outline Dimension : | 462.8×272 mm (H×V) |
| Outline Depth : | 10.2 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| MV236FHB-N10 | BOE | 24.0" | 1920×1080 |
| HR270QH3-100 | BOE | 27.0" | 2560×1440 |
| BF045WVQ-401 | BOE | 4.5" | 480×854 |
| BV055HDE-N40 | BOE | 5.5" | 720×1280 |
| TV080WXB-NV0 | BOE | 8.0" | 800×1280 |
| AV080WVB-NW2 | BOE | 8.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
HM200WD1-200 Information
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/25/40 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
HM200WD1-200 Information
| Lamp Position : | Edge light type (Right side) | |||||
| Lamp Type : | WLED | |||||
| Lamp Amount : | 13S4P | |||||
| Lamp Shape : | 4 strings | |||||
| Lamp Life Time : | 30K(Min.) (Hours) | |||||
| Lamp Voltage : | 37.7/41.6/46.8V (Typ./Max.) | |||||
| Lamp Current : | 57/60/63mA (Min./Typ./Max.) | |||||
| Lamps Power Consumption : | 9.05/9.98/11.23W (Min./Typ./Max.) | |||||
| Interface Type : | Connector | |||||
| Interface Position : | ||||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | 3708K-Q06N-00L | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Lamp Driver Board : | No | |||||
