Product Details:
|
| Contrast Ratio: | 800:1 (Typ.) | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 , WXGA | Surface: | Antiglare (Haze 25%), Hard Coating (3H) |
| Frequency: | 60Hz | Signal Interface: | MIPI (4 Data Lanes) |
| High Light: | lcd display panel,innolux lcd screen |
||
HJ101IA-01F 10.1 inch Innolux LCD Panel with 216.96×135.6 mm Active Area
| Panel Size : | 10.1 inch | |
| Dot Resolution : | 1280(RGB)×800 (WXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 149 PPI | |
| Aspect Ratio : | 16:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0565×0.1695 mm (H×V) | |
| Pixel Pitch : | 0.1695×0.1695 mm (H×V) | |
| Weight : |
| |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) | |
| Active Area : | 216.96×135.6 mm (H×V) | |
| Outline Dimension : | 229.46×149.15 mm (H×V) | |
| Outline Depth : | 2.6/4.5 (Typ./Max.) mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
| |
| Brightness : | 350 cd/m² (Typ.) | |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 10/15 (Typ.)(Tr/Td) | |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : |
| |
| White Variation : | 1.25/1.43 (Typ./Max.)(13 points) | |
| Sunlight Readable : | N |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V156B2-P02 | Innolux | 15.6" | 1366×768 |
| N154I2-P05 | Innolux | 15.4" | 1280×800 |
| C03024-01Z | Innolux | 3.0" | 960×480(dot) |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |
| CG043JN16 | Innolux | 4.3" | 480×800 |
| F04008-01U | Innolux | 4.0" | 480×800 |
| N156BGE-P21 | Innolux | 15.6" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

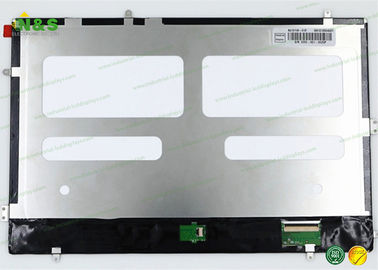

HJ101IA-01F Picture
