Product Details:
|
| Model Number:: | TM038QV-67A02E | Brand:: | Tianma LCD Displays |
|---|---|---|---|
| Resolution :: | 320(RGB)×240 , QVGA | Size:: | 3.8" |
| Aspect Ratio :: | 4:3 (H:V) | Dot Pitch :: | 0.080×0.240 Mm (H×V) |
| High Light: | black and white lcd display,lcd display white screen |
||

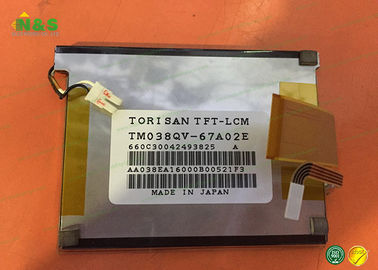

Tianma LCD Displays ,Original 3.8 ''TM038QV-67A02E TM038QV-67A02 Pantalla LCD
| Panel Brand : | TORASIAN |
|---|---|
| Panel Model : | TM038QV-67A02E |
| Panel Type : | a-Si TFT-LCD , LCM |
| Application : | Mobille Phone |
| Operating Temperature : | 0 ~ 50 °C |
| Storage Temperature : | -30 ~ 60 °C |
| RoHS : | ROHS |
Kyocera offers touch panels for all of our TFT-LCD products, from 3.5" to 12.1". Our touch panel's provide high quality, reliability and durability. Factory installed with a full factory warranty.
Custom touch solutions are also available from our Value Added assembly plant contains but not only for LCD Screen of Innolux ,AUO, Samsung, LG & Sharp.
• Resistive touch panels
• Film touch or glass touch panel options
• Custom touch solutions
• Optical bond P-cap touch screen solutions
• On-cell touch
Panel Size : 3.8 inch
Dot Resolution : 320(RGB)×240 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 105 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.080×0.240 mm (H×V)
Pixel Pitch : 0.240×0.240 mm (H×V)
Active Area : 76.8×57.6 mm (H×V)
Landscape or Portrait : Landscape type
Touch Panel : Embeded
