Product Details:
|
| Model Number:: | TM028HBHG02 | Brand: | Tianma LCD Displays |
|---|---|---|---|
| Operating Temperature :: | -20 ~ 60 °C | Storage Temperature :: | -30 ~ 70 °C |
| Pixel Configuration :: | RGB Vertical Stripe | Pixel Density :: | 141 PPI |
| High Light: | black and white lcd display,lcd panel screen |
||

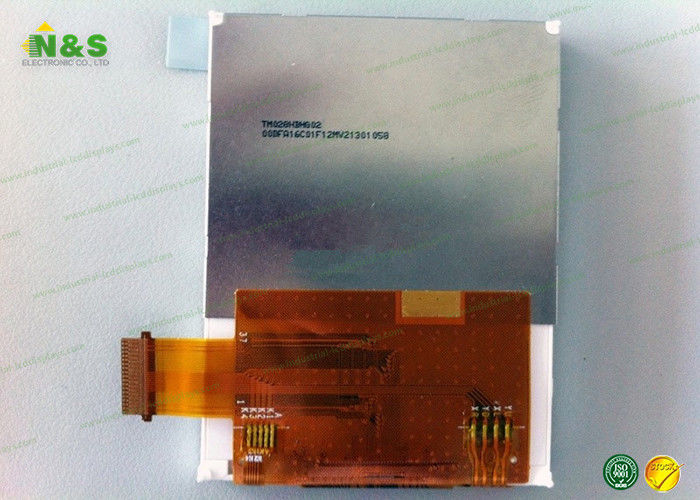

TM028HBHG02 2.8inch panel 240×320 resolution ,Tianma LCD Displays
| Panel Size : | 2.8" |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.060×0.180 mm (H×V) |
| Pixel Pitch : | 0.180×0.180 mm (H×V) |
| Weight : | TBD |
| Surface : | Clear |
| Active Area : | 43.2×57.6 mm (H×V) |
| Outline Dimension : | 50×69.2 mm (H×V) |
| Outline Depth : | 4.2±0.2 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
Display Mode : TN, Normally White, Transmissive
Brightness : 210 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 65% NTSC (CIE1931)
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.281; Wy:0.301
White Variation : 1.25/1.33 (Typ./Max.)(9 points)
Sunlight Readable : N
ISO9001 certificated, Factory Direct Supplied
RoHS Compliant, Lead Free, Reach Compliant
Competitive Price and Short Lead-time
4. Professional Team with Rich Experiences in Design/Mfg/Quality Control
5. Small MOQ Support & Fast Response to Customers
6. Long Product Life Time
