Product Details:
|
| Contrast Ratio: | 500:1 (Typ.) | Panel Size: | 9.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Surface: | Antiglare |
| Frequency: | 60Hz | Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 50 Pins |
| High Light: | lcd display panel,innolux lcd screen |
||

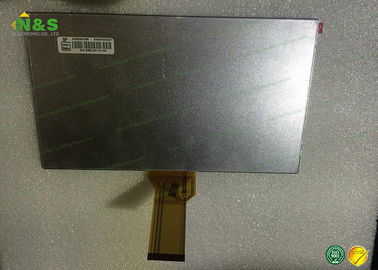

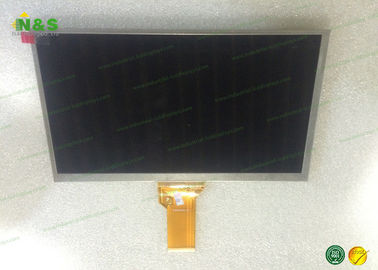

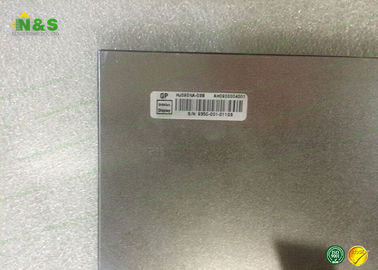

HJ090NA-03B 9.0 inch Normally White Innolux LCD Panel with 198×111.696 mm
| 9.0 inch | |
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 104 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0825×0.2327 mm (H×V) | |
| Pixel Pitch : | 0.2475×0.2327 mm (H×V) | |
| Weight : |
| |
| Surface : | Antiglare | |
| Active Area : | 198×111.696 mm (H×V) | |
| Bezel Area : | 201.0×114.7 mm (H×V) | |
| Outline Dimension : | 211.1×126.5 mm (H×V) | |
| Outline Depth : | 5.9±0.3 mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
| Display Mode : |
| |
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | |
| Color Gamut : | 70% NTSC (CIE1931) | |
| Response Time : | 10/15 (Typ.)(Tr/Td) | |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) | |
| White color Chromaticity : | Wx:0.310; Wy:0.330 | |
| White Variation : |
| |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V156B2-P02 | Innolux | 15.6" | 1366×768 |
| N154I2-P05 | Innolux | 15.4" | 1280×800 |
| C03024-01Z | Innolux | 3.0" | 960×480(dot) |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |
| CG043JN16 | Innolux | 4.3" | 480×800 |
| F04008-01U | Innolux | 4.0" | 480×800 |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
