Product Details:
|
| Panel Brand: | INNOLUX | Panel Model: | AT102TN03 V.8 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.2 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd display module |
||
AT102TN03 V.8 INNOLUX LCD Panel 10.2 inch with 222×132.48 mm
AT102TN03 V.8 Detail
| Panel Brand : | INNOLUX |
| Panel Model : | AT102TN03 V.8 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.2 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 222×132.48 mm |
| Outline : | 235×145.8×6.4 mm |
| Surface : | Antiglare |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S10P WLED Without Driver |
| Signal Interface : | TTL (1 ch, 6-bit) , 60 pins |
| Input Voltage : | 3.3/9.2/16/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V850DK1-QS1 Rev.C2 | Innolux | 85" | 3840×2160 |
| V650DJ4-QS5 Rev.M1 | Innolux | 65" | 3840×2160 |
| N080ICP-G01 CELL | Innolux | 8.0" | 800×1280 |
| DE080NA-01D | Innolux | 8.0" | 800×480 |
| AT080YN01 | Innolux | 8.0" | 1024×600 |
| PG055IA-03H | Innolux | 5.5" | 720×1280 |
| PP057IC-01A | Innolux | 5.7" | 1080×1920 |
| Panel Size : | 10.2 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0925×0.2760 mm (H×V) |
| Pixel Pitch : | 0.2775×0.2760 mm (H×V) |
| Weight : | 332g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 222×132.48 mm (H×V) |
| Bezel Area : | 225.3×135.7 mm (H×V) |
| Outline Dimension : | 235×145.8 mm (H×V) |
| Outline Depth : | 6.1±0.3 mm |
| Holes & Brackets : | Side mounting holes (6-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.

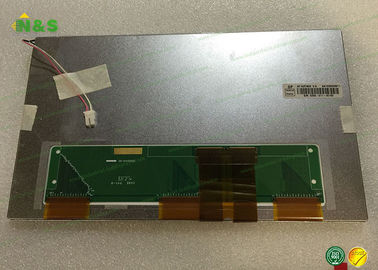

AT102TN03 V.8 Picture
