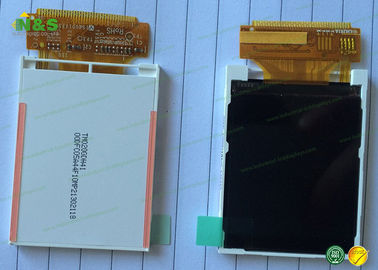

220 cd/m² (Typ.) Tianma 2.0"inch pulgadas 262 K 36 P pantalla LCD TFT TM020GDH41

220 cd/m² (Typ.)  Tianma  2.0"inch  pulgadas 262 K 36 P pantalla LCD TFT TM020GDH41
220 cd/m² (Typ.)  Tianma  2.0"inch  pulgadas 262 K 36 P pantalla LCD TFT TM020GDH41

Large Image :  220 cd/m² (Typ.) Tianma 2.0"inch pulgadas 262 K 36 P pantalla LCD TFT TM020GDH41

Product Details:
Place of Origin: TAIWAN
Brand Name: TIANMA
Certification: CE
Model Number: TM020GDH41
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: usd
Packaging Details: standard package
Delivery Time: between 24hours
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 100000

220 cd/m² (Typ.) Tianma 2.0"inch pulgadas 262 K 36 P pantalla LCD TFT TM020GDH41

Description
Active Area :: 31.68×39.6 Mm Outline :: 38.03×51.45×3.15 Mm
Surface :: Clear, Hard Coating (3H) Brightness :: 220 Cd/m² (Typ.)
Contrast Ratio :: 500:1 (Typ.) Display Colors :: 65K/262K , CIE1931 60%
High Light:

black and white lcd display

,

lcd panel screen

220 cd/m² (Typ.) Tianma 2.0"inch pulgadas 262 K 36 P pantalla LCD TFT TM020GDH41





TIANMA TM020GDH41 Basic Information



Panel Brand : Tianma
Panel Model : TM020GDH41
Panel Type : a-Si TFT-LCD , LCM
Application : Mobile Phone
Operating Temperature : -20 ~ 70 °C
Storage Temperature : -30 ~ 80 °C
RoHS : ROHS
Specific Feature :





TIANMA TM020GDH41 Mechanical Features:

Panel Size : 2.0 inch
Dot Resolution : 176(RGB)×220 (QCIF+)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 141 PPI
Aspect Ratio : 4:5 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.060×0.180 mm (H×V)
Pixel Pitch : 0.180×0.180 mm (H×V)
Weight : 7.2g
Surface : Clear, Hard coating (3H)
Active Area : 31.68×39.6 mm (H×V)
Bezel Area : 32.68×40.6 mm (H×V)
Outline Dimension : 38.03×51.45 mm (H×V)
Outline Depth : 2.35/3.15 (Typ./Max.) mm
Landscape or Portrait : Portrait type
Touch Panel : Without
