Product Details:
|
| Panel Brand: | INNOLUX | Panel Model: | AT080TN62 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd display module |
||
AT080TN62 INNOLUX LCD Panel 8.0 inch with 176.64×99.36 mm Active Area
AT080TN62 Detail
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | AT080TN62 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 176.64×99.36 mm |
| Outline : | 192.8×116.9×3.7 mm |
| Surface : | Antiglare |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Min.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 6/8-bit) , 50 pins |
| Input Voltage : | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
| Panel Size : | 8.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 116 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0736×0.2070 mm (H×V) |
| Pixel Pitch : | 0.2208×0.2070 mm (H×V) |
| Weight : | TBD |
| Surface : | Antiglare |
| Active Area : | 176.64×99.36 mm (H×V) |
| Bezel Area : | 180.1×103.4 mm (H×V) |
| Outline Dimension : | 192.8×116.9 mm (H×V) |
| Outline Depth : | 3.4±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V850DK1-QS1 Rev.C2 | Innolux | 85" | 3840×2160 |
| V650DJ4-QS5 Rev.M1 | Innolux | 65" | 3840×2160 |
| N080ICP-G01 CELL | Innolux | 8.0" | 800×1280 |
| DE080NA-01D | Innolux | 8.0" | 800×480 |
| AT080YN01 | Innolux | 8.0" | 1024×600 |
| PG055IA-03H | Innolux | 5.5" | 720×1280 |
Packing & Delivery for our LCD Screen Panel Replacements:

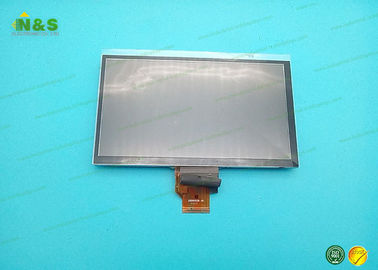

AT080TN62 Picture
