5.0 inch AT050TN33 INNOLUX LCD Panel LCM 480×272 300 500:1 16.7M WLED TTL

5.0 inch AT050TN33   INNOLUX   LCD Panel 	LCM	480×272 	300	500:1	16.7M	WLED	TTL
5.0 inch AT050TN33   INNOLUX   LCD Panel 	LCM	480×272 	300	500:1	16.7M	WLED	TTL 5.0 inch AT050TN33   INNOLUX   LCD Panel 	LCM	480×272 	300	500:1	16.7M	WLED	TTL 5.0 inch AT050TN33   INNOLUX   LCD Panel 	LCM	480×272 	300	500:1	16.7M	WLED	TTL 5.0 inch AT050TN33   INNOLUX   LCD Panel 	LCM	480×272 	300	500:1	16.7M	WLED	TTL

Large Image :  5.0 inch AT050TN33 INNOLUX LCD Panel LCM 480×272 300 500:1 16.7M WLED TTL

Product Details:
Place of Origin: korea
Brand Name: INNOLUX
Certification: ISO9001
Model Number: AT050TN33
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

5.0 inch AT050TN33 INNOLUX LCD Panel LCM 480×272 300 500:1 16.7M WLED TTL

Description
Panel Brand: INNOLUX Panel Model: AT050TN33
Panel Type: A-Si TFT-LCD , LCM Panel Size: 5.0 Inch
Resolution: 480(RGB)×272 , WQVGA Display Mode: TN, Normally White, Transmissive
High Light:

tft lcd screen

,

tft lcd panel

5.0 inch AT050TN33 INNOLUX LCD Panel LCM 480×272 300 500:1 16.7M WLED TTL



AT050TN33 Specification

Panel Brand : INNOLUX
Panel Model : AT050TN33 1 Compatible model
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 5.0 inch
Resolution : 480(RGB)×272 , WQVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 110.88×62.832 mm
Outline : 120.7×75.8×4.45 mm
Surface : Antiglare
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 50%
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 6S2P WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 8-bit) , 40 pins
Input Voltage : 3.3V (Typ.)(VCC)





Panel Size : 5.0 inch
Dot Resolution : 480(RGB)×272 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 109 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.077×0.231 mm (H×V)
Pixel Pitch : 0.231×0.231 mm (H×V)
Weight : 83g (Typ.)
Surface : Antiglare
Active Area : 110.88×62.832 mm (H×V)
Bezel Area : 113.90×65.85 mm (H×V)
Outline Dimension : 120.7×75.8 mm (H×V)
Outline Depth : 4.25±0.2 mm
Landscape or Portrait : Landscape type
Touch Panel : Embeded (4-wire Resistive, Film / Glass)



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
V850DK1-QS1 Rev.C2 Innolux 85" 3840×2160
V650DJ4-QS5 Rev.M1 Innolux 65" 3840×2160
N080ICP-G01 CELL Innolux 8.0" 800×1280
DE080NA-01D Innolux 8.0" 800×480
AT080YN01 Innolux 8.0" 1024×600
PG055IA-03H Innolux 5.5" 720×1280
PP057IC-01A Innolux 5.7" 1080×1920
PG055IC-07F Innolux 5.5" 1080×1920
PB050IC-01D Innolux 5.0" 1080×1920
PG050IA-02A Innolux 5.0" 540×960
V400DK1-QE2 Innolux 40" 3840×2160
V650DK1-QS3 Innolux 65" 3840×2160



What’s our advantage compared with other suppliers?

(1). Before shipment, we will test every LCD Screen and ensure the quality.

(2). we provide high quality lcd panels for customers all over the world.

(3) .We have DBS, ISO9001 Certifications for our Panels.

(4) .Excellent service on before-sale, on-sale and after-sale.



N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.

7) Feel free to contact to us if there is any problems during the shipment process.

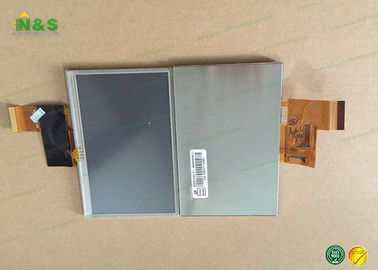

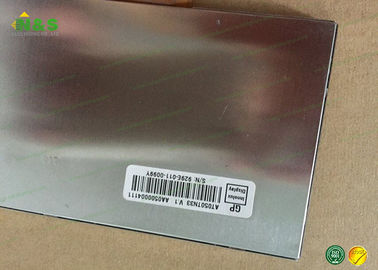

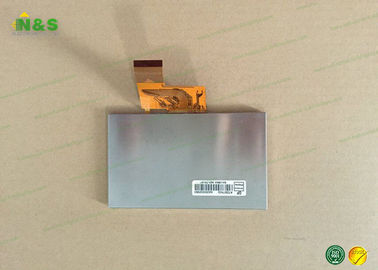

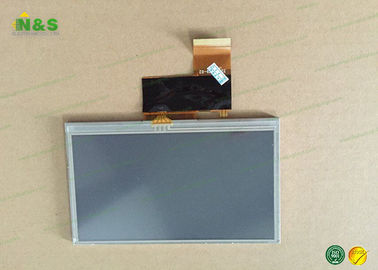

AT050TN33 Picture



5.0 inch AT050TN33   INNOLUX   LCD Panel 	LCM	480×272 	300	500:1	16.7M	WLED	TTL 0
