Product Details:
|
| Contrast Ratio: | 600:1 (Typ.) | Panel Size: | 14.0 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 , WXGA | Surface: | Hard Coating (3H) |
| Frequency: | 60Hz | Signal Interface: | LVDS (1 Ch, 6-bit) , 40 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||

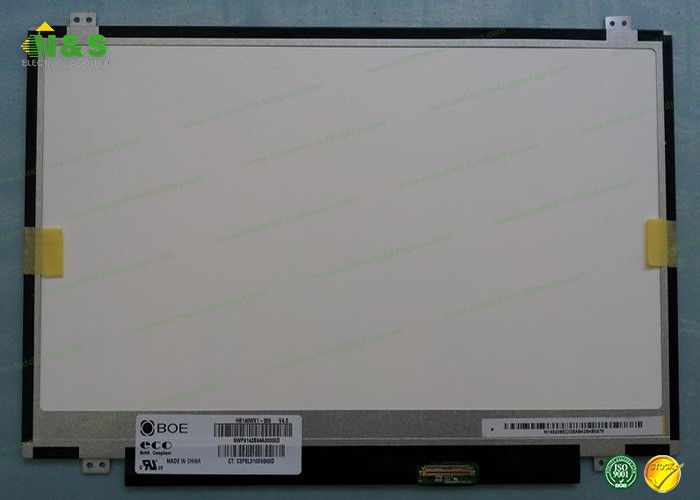

HB140WX1-50 14.0 inch 1366(RGB)×768 , WXGA Normally White
| Panel Size : | 14.0 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 112 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0755×0.2265 mm (H×V) |
| Pixel Pitch : | 0.2265×0.2265 mm (H×V) |
| Weight : | 290g (Max.) |
| Surface : | Hard coating (3H) |
| Active Area : | 309.399×173.952 mm (H×V) |
| Outline Dimension : | 320.9×187.6 mm (H×V) |
| Outline Depth : | 3.0 (Max.) mm |
| Shape Style : | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 12 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable : | N |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
