Product Details:
|
| Panel Brand: | Mitsubishi | Panel Model: | AA104VC02 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd display module |
||
AA104VC02 Mitsubishi LCD Panel 10.4 inch LCM 640×480 430 500:1 262K CCFL TTL
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Mitsubishi LCD AA104VC02 Details
| Panel Brand : | Mitsubishi |
| Panel Model : | AA104VC02 1 Compatible model |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 243×181.6×12.7 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 430 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | CMOS (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 540g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 243×181.6 mm (H×V) |
| Outline Depth : | 12.2±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA150XN21 | Mitsubishi | 15.0" | 1024×768 |
| AA121TD03 | Mitsubishi | 12.1" | 1280×800 |
| AA150XT11-DE-01 | Mitsubishi | 15.0" | 1024×768 |
| AA121XN11-DE-01 | Mitsubishi | 12.1" | 1024×768 |
| AA104XF12-DE-02 | Mitsubishi | 10.4" | 1024×768 |
| AA084XE11-DA-02 | Mitsubishi | 8.4" | 1024×768 |
| AA084XE11-DA-01 | Mitsubishi | 8.4" | 1024×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

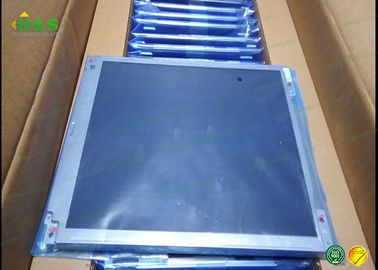

AA104VC02 Mitsubishi LCD Panel Picture
