AA104SL02 Mitsubishi LCD Panel 10.4" LCM 800×600 700 700:1 262K/16.7M WLED LVDS

AA104SL02    Mitsubishi  LCD Panel 10.4"	LCM	800×600 	700	700:1	262K/16.7M	WLED	LVDS
AA104SL02    Mitsubishi  LCD Panel 10.4"	LCM	800×600 	700	700:1	262K/16.7M	WLED	LVDS AA104SL02    Mitsubishi  LCD Panel 10.4"	LCM	800×600 	700	700:1	262K/16.7M	WLED	LVDS

Large Image :  AA104SL02 Mitsubishi LCD Panel 10.4" LCM 800×600 700 700:1 262K/16.7M WLED LVDS

Product Details:
Place of Origin: korea
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AA104SL02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

AA104SL02 Mitsubishi LCD Panel 10.4" LCM 800×600 700 700:1 262K/16.7M WLED LVDS

Description
Panel Brand: Mitsubishi Panel Model: AA104SL02
Panel Type: A-Si TFT-LCD , LCM Panel Size: 10.4 Inch
Resolution: 800(RGB)×600 , SVGA Display Mode: TN, Normally White, Transmissive
High Light:

tft lcd screen

,

tft lcd panel

AA104SL02 Mitsubishi LCD Panel 10.4" LCM 800×600 700 700:1 262K/16.7M WLED LVDS

AA104SL02 Mitsubishi LCD Detail

Panel Brand : Mitsubishi
Panel Model : AA104SL02
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.4 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 211.2×158.4 mm
Outline : 230×180.2×10 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 700 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40%
Response Time : 4/12 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6/8-bit) , 20 pins
Input Voltage : 3.3V (Typ.)


Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;

  1. Quickly delivery:

* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.

  1. long-term partner:

* Products are sold to more than 20 countries.

  1. Super After-Sale service:

* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LK315T3HC1K SHARP 31.5" 1366×768
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk



Panel Size : 10.4 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 465g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 215.4×161.8 mm (H×V)
Outline Dimension : 230×180.2 mm (H×V)
Outline Depth : 9.5±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without


Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.

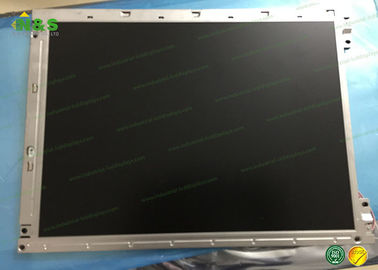

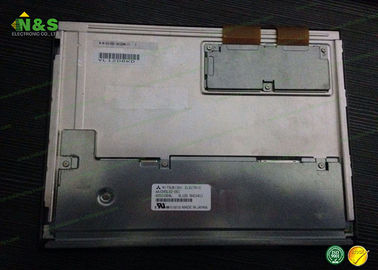

Picture for AA104SL02 Mitsubishi LCD

AA104SL02    Mitsubishi  LCD Panel 10.4"	LCM	800×600 	700	700:1	262K/16.7M	WLED	LVDS 0
