Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ104V1LG61 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
Normally White LQ104V1LG61 Sharp LCD Panel 10.4 inch with 211.2×158.4 mm
LQ104V1LG61 Product Information
| Panel Brand : | SHARP | |
| Panel Model : | LQ104V1LG61 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 10.4 inch | |
| Resolution : | 640(RGB)×480 , VGA | |
|
TN, Normally White, Transmissive | |
| Active Area : | 211.2×158.4 mm | |
| Outline : | 246.5×179.4×13.7 mm | |
| Surface : | Antiglare, Hard coating (3H) | |
| Brightness : | 450 cd/m² (Typ.) | |
|
600:1 (Typ.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 10/25 (Typ.)(Tr/Td) | |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
|
2 pcs CCFL Without Driver | |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins | |
| Input Voltage : | 3.3/5.0V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| Panel Size : | 10.4 inch | |
| Dot Resolution : | 640(RGB)×480 (VGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 76 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.110×0.330 mm (H×V) | |
| Pixel Pitch : | 0.330×0.330 mm (H×V) | |
| Weight : | 620g (Max.) | |
| Surface : | Antiglare, Hard coating (3H) | |
|
211.2×158.4 mm (H×V) | |
| Bezel Area : | 214.6×162.4 mm (H×V) | |
| Outline Dimension : | 246.5×179.4 mm (H×V) | |
| Outline Depth : | 13.7 (Max.) mm | |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
|
Without |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day

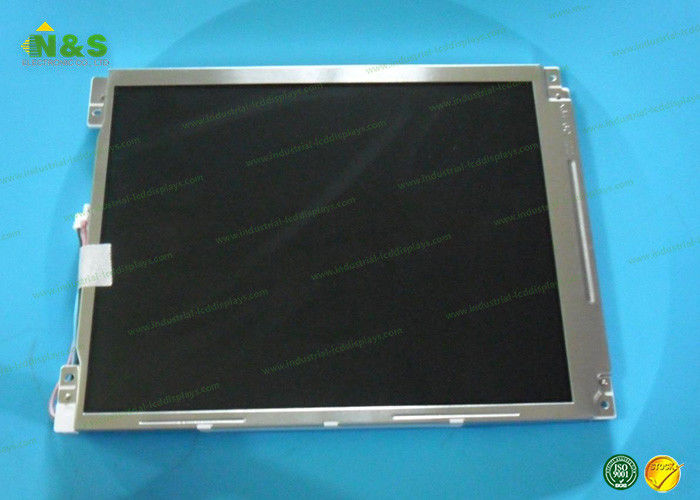

LQ104V1LG61 Picture
