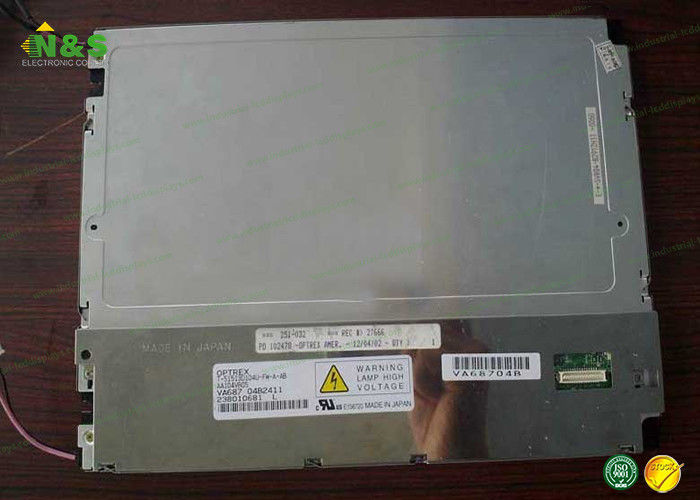

Large Image :  AA104VB05 flat industrial lcd display repair , tft lcd screen panel replacement

Product Details:
Place of Origin: KOREA
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AA104VB05
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

AA104VB05 flat industrial lcd display repair , tft lcd screen panel replacement

Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 10.4 Inch
Resolution: 640(RGB)×480 , VGA Display Mode: TN, Normally White, Transmissive
Active Area: 211.2×158.4 Mm Outline: 243×181.6×12.7 Mm
High Light:

tft lcd screen

,

tft lcd panel

AA104VB05 flat industrial lcd display repair , tft lcd screen panel replacement

AA104VB05 Information

Panel Size : 10.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.110×0.330 mm (H×V)
Pixel Pitch : 0.330×0.330 mm (H×V)
Weight : 530g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 215.4×161.8 mm (H×V)
Outline Dimension : 243×181.6 mm (H×V)
Outline Depth : 12.2±0.5 mm
Holes & Brackets : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 380 cd/m² (Typ.)
Contrast Ratio : 300 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 15/35 (Typ.)(Tr/Td)
Viewing Angle : 60/60/55/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.320; Wy:0.340
Sunlight Readable : N


Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day

After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AA150QB01 Mitsubishi 15.0" 1280×960
AA150QA02 Mitsubishi 15.0" 1280×960
AA150QA01 Mitsubishi 15.0" 1280×960
AA142XE02 Mitsubishi 14.2" 1024×768
AA142XE01 Mitsubishi 14.2" 1024×768
AA142XD11 Mitsubishi 14.2" 1024×768
AA142XC11 Mitsubishi 14.2" 1024×768
