8.4 Inch AA084VF05 TFT LCD Module , tft lcd display module 170.88×128.16 mm

8.4 Inch AA084VF05 TFT LCD Module , tft lcd display module 170.88×128.16 mm
8.4 Inch AA084VF05 TFT LCD Module , tft lcd display module 170.88×128.16 mm

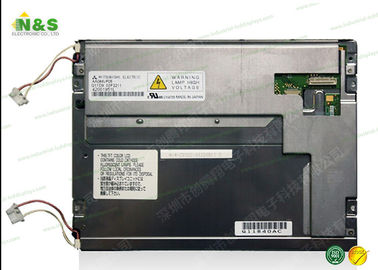

Large Image :  8.4 Inch AA084VF05 TFT LCD Module , tft lcd display module 170.88×128.16 mm

Product Details:
Place of Origin: KOREA
Brand Name: Mitsubishi
Certification: ISO9001
Model Number: AA084VF05
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

8.4 Inch AA084VF05 TFT LCD Module , tft lcd display module 170.88×128.16 mm

Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 8.4 Inch
Resolution: 640(RGB)×480 , VGA 800(RGB)×600 , SVGA Display Mode: TN, Normally White, Transmissive
Active Area: 170.88×128.16 Mm Outline: 199.5×149×12 Mm
High Light:

tft lcd panel

,

tft lcd display module

8.4 inch AA084VF05 TFT LCD Module Mitsubishi Normally White 170.88×128.16 mm

Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.


Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.

AA084VF05 Information



Panel Size : 8.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 95 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.089×0.267 mm (H×V)
Pixel Pitch : 0.267×0.267 mm (H×V)
Weight : 350g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 170.88×128.16 mm (H×V)
Bezel Area : 174.9×132.2 mm (H×V)
Outline Dimension : 199.5×149 mm (H×V)
Outline Depth : 11.5±0.5 mm
Holes & Brackets : Face mounting holes (4-Φ3.3) on left right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 380 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 40% NTSC (CIE1931)
Response Time : 4/12 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.30 (Max.)(5 points)
Sunlight Readable : N


Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AA150QB01 Mitsubishi 15.0" 1280×960
AA150QA02 Mitsubishi 15.0" 1280×960
AA150QA01 Mitsubishi 15.0" 1280×960
AA142XE02 Mitsubishi 14.2" 1024×768
AA142XE01 Mitsubishi 14.2" 1024×768
AA142XD11 Mitsubishi 14.2" 1024×768
AA142XC11 Mitsubishi 14.2" 1024×768

Pls contact to us for more stock information: salespm@nselectronic.com.hk
