Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 23.1 Inch |
|---|---|---|---|
| Resolution: | 1600(RGB)×1200 , UXGA | Display Mode: | MVA, Normally Black, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Normally Black LQ231U1LW01 470.4×352.8 mm Active Area 23.1 inch SHARP
LQ231U1LW01 Detail
| Panel Size : | 23.1 inch |
| Dot Resolution : | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 5.50Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 470.4×352.8 mm (H×V) |
| Bezel Area : | 476.6×359.0 mm (H×V) |
| Outline Dimension : | 530×432.8 mm (H×V) |
| Outline Depth : | 32.5 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4-Ф4.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | MVA, Normally Black, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 20/10 (Typ.)(Tr/Td); 15 (Typ.)(G to G) |
| Viewing Angle : | 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 Points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Packing & Delivery for our LCD Screen Panel Replacements:

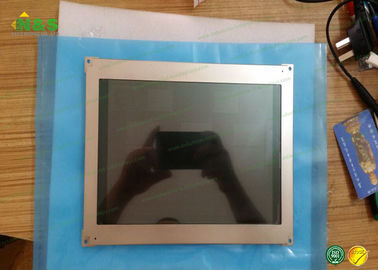

LQ231U1LW01 Picture
